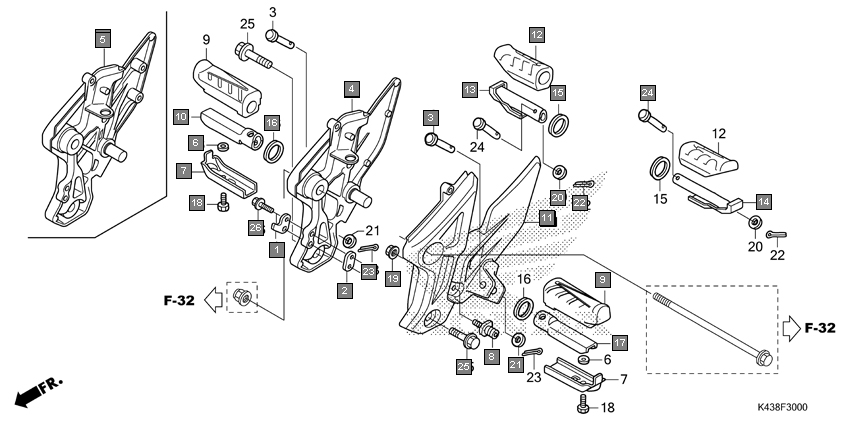

Motorcycles CB Hornet 160R CBF160MG Frame Step
Ref.No. Part No. Description Oty
1 50220K43900 STOPPER, KICK STARTER 1
2 50221K43900 NUT, PLATE 1
3 50603KSP900 PIN, STEP BAR JOINT 2
4 50610K43900ZA HOLDER, R. STEP *NH411M* FORCE SILVER METALLIC 1
5 50610K43910ZA HOLDER, R. STEP *NH411M* FORCE SILVER METALLIC 1
6 50618KE8000 COLLAR, 6.5X11X3 2
7 50619KSP900 PLATE, STEP LOWER 2
8 50643KYJ900 PIVOT, CHANGE PEDAL 1
9 50661K43900 RUBBER, MAIN STEP 2
10 50701KSP900 BAR, R. MAIN STEP 1
11 50710K43900ZA HOLDER, L. STEP *NH411M* FORCE SILVER METALLIC 1
12 50710KYJ900 RUBBER, PILLION STEP 2
13 50711K43900 BAR, R. PILLION STEP 1
14 50712K43900 BAR, L. PILLION STEP 1
15 50715KE8000 PLATE, PILLION STEP SIDE 2
16 50715KSP910 PLATE, PILLION STEP SIDE 2
17 50801KSP900 BAR, L. MAIN STEP 1
18 92101060120G BOLT, HEX., 6X12 2
19 9405008000 NUT, FLANGE, 8MM 1
20 9410106000 WASHER, PLAIN, 6MM 2
21 9410208000 WASHER, PLAIN, 8MM 2
22 9420116150 PIN, SPLIT, 1.6X15 2
23 9420120150 PIN, SPLIT, 2.0X15 2
24 9501581000 PIN A, PILLION STEP 2
25 957011003000 BOLT, FLANGE, 10X30 2
26 958010602807 BOLT, FLANGE, 6X28 2
