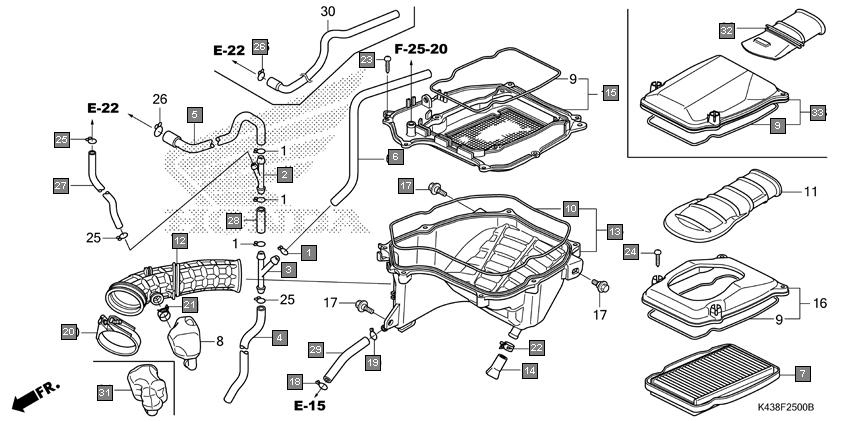

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16163GHB600 | CLIP, TUBE | 4 |
| 2 | 16180K43900 | JOINT A, 3WAY | 1 |
| 3 | 16181K43900 | JOINT B, 3WAY | 1 |
| 4 | 16197K43900 | TUBE, DRAIN | 1 |
| 5 | 16198K43900 | TUBE A, AIR VENT | 1 |
| 6 | 16199K43900 | TUBE B, AIR VENT | 1 |
| 7 | 17211K38900 | ELEMENT COMP., AIR CLEANER | 1 |
| 8 | 17213K38900 | RESONATOR | 1 |
| 9 | 17214K38900 | SEAL, AIR CLEANER | 2 |
| 10 | 17215KSP900 | SEAL A, AIR CLEANER | 1 |
| 11 | 17219K38900 | DUCT, AIR CLEANER | 1 |
| 12 | 17222K38900 | TUBE, AIR CLEANER CONNECTING | 1 |
| 13 | 17225K38900 | CASE SUB ASSY., AIR CLEANER | 1 |
| 14 | 17227KTE910 | TUBE, VINYL, 11X15X40 | 1 |
| 15 | 17235K38900 | HOLDER SUB ASSY., AIR CLEANER | 1 |
| 16 | 17245K38900 | COVER SUB ASSY., AIR CLEANER | 1 |
| 17 | 90111162000 | BOLT, FLANGE, 6MM | 3 |
| 18 | 90651KM9000 | CLIP, TUBE(B14) | 1 |
| 19 | 90651MK3780 | CLIP, TUBE(B12.5) | 1 |
| 20 | 90652K43900 | BAND, AIR CLEANER CONNECTING TUBE(54MM) | 1 |
| 21 | 90678K38900 | CLIP, RESONATOR | 1 |
| 22 | 91406KFN850 | CLAMP, TUBE(D14.5) | 1 |
| 23 | 9390325480 | SCREW, TAPPING, 5X20 | 7 |
| 24 | 9390325580 | SCREW, TAPPING, 5X25 | 4 |
| 25 | 9500202089 | CLIP, TUBE(B8) | 3 |
| 26 | 9500270000 | CLIP, TUBE(C11) | 1 |
| 27 | 950054514050 | TUBE, 4.5X140 | 1 |
| 28 | 950055004550 | TUBE, 5X45(95005-50001-30M) | 1 |
| 29 | 950058010020 | TUBE, 8X100(95005-80001-20M) | 1 |
