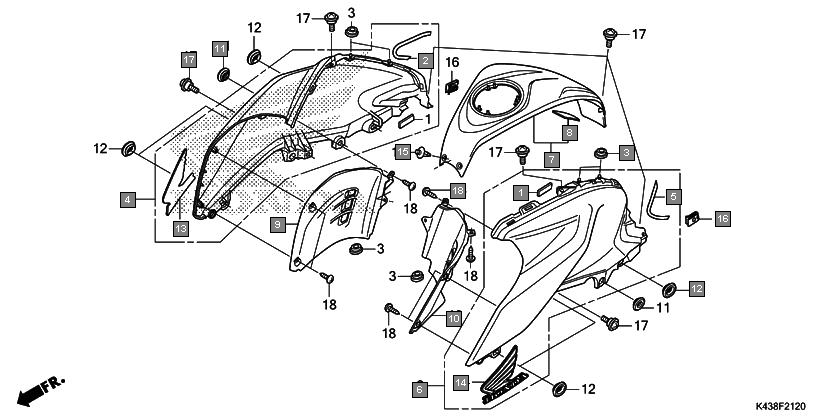

Motorcycles CB Hornet 160R CBF160MG Frame Fuel tank cover
Ref.No. Part No. Description Oty
1 64412K43900 SPONGE, FUEL TANK SIDE COVER RUBBER 2
2 64413K43900 FILM, FUEL TANK COVER PROTECTOR(R.) 1
3 64413KSSC00 GROMMET, BODY COVER 6
4 64415K43900ZA COVER ASSY., R. FUEL TANK (WITH EMBLEM) *YR302M* NEO ORANGE METALLIC 1
5 64415K43900ZE COVER ASSY., R. FUEL TANK (WITH EMBLEM) *NHA84P* PEARL NIGHTSTAR BLACK 1
6 64415K43900ZD COVER ASSY., R. FUEL TANK (WITH EMBLEM) *NHB63P* PEARL AMAZING WHITE 1
7 64415K43900ZC COVER ASSY., R. FUEL TANK (WITH EMBLEM) *PB123PA* PEARL SIREN BLUE-A 1
8 64415K43900ZB COVER ASSY., R. FUEL TANK (WITH EMBLEM) *R321* SPORTS RED 1
9 64415K43D40ZC COVER ASSY., R. FUEL TANK (WITH EMBLEM & STRIPE) *TYPE2* 1
10 64423K43900 FILM, FUEL TANK COVER PROTECTOR(L.) 1
11 64425K43900ZD COVER ASSY., L. FUEL TANK (WITH EMBLEM) *NHB63P* PEARL AMAZING WHITE 1
12 64425K43900ZC COVER ASSY., L. FUEL TANK (WITH EMBLEM) *PB123PA* PEARL SIREN BLUE-A 1
13 64425K43900ZA COVER ASSY., L. FUEL TANK (WITH EMBLEM) *YR302M* NEO ORANGE METALLIC 1
14 64425K43900ZE COVER ASSY., L. FUEL TANK (WITH EMBLEM) *NHA84P* PEARL NIGHTSTAR BLACK 1
15 64425K43900ZB COVER ASSY., L. FUEL TANK (WITH EMBLEM) *R321* SPORTS RED 1
16 64425K43D40ZC COVER ASSY., L. FUEL TANK (WITH EMBLEM & STRIPE) *TYPE2* 1
17 64431K43900 COVER, FUEL TANK CENTER 1
18 64432K43900 SPONGE, FUEL TANK CENTER COVER RUBBER 1
19 64461K43900 COVER, R. FUEL TANK INNER 1
20 64471K43900 COVER, L. FUEL TANK INNER 1
21 83551376000 GROMMET, SIDE COVER 2
22 83551GE2000 GROMMET, AIR CLEANER CASE 6
23 86201K43900 EMBLEM, R. WING(95MM) 1
24 86202K43900 EMBLEM, L. WING(95MM) 1
25 90116SP0003 CLIP, BUMPER SEAL 2
26 90320KTE600 NUT, SPRING, 5MM 2
27 91509GE2760 SCREW, PAN, 5X11.5 7
28 9390325280 SCREW, TAPPING, 5X12 8
