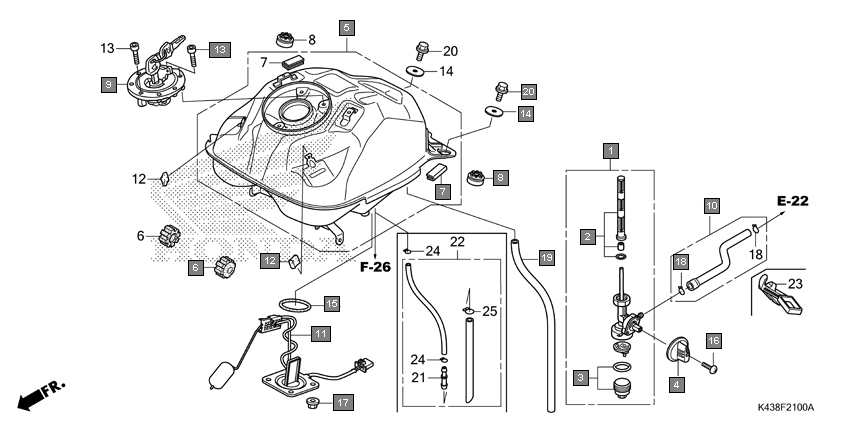

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16950K43901 | COCK ASSY., FUEL | 1 |
2 | 16952K43900 | SCREEN SET, FUEL STRAINER | 1 |
3 | 16953K43900 | CUP SET, FUEL STRAINER | 1 |
4 | 16955K43900 | LEVER, FUEL COCK | 1 |
5 | 17530K43900 | TANK SUB ASSY., FUEL | 1 |
6 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
7 | 17612K43900 | RUBBER, BODY COVER SETTING | 2 |
8 | 17613K43900 | CUSHION, FUEL TANK | 2 |
9 | 17620KSP861 | CAP COMP., FUEL FILLER | 1 |
10 | 17681K43900 | TUBE, FUEL | 1 |
11 | 37800K43901 | FUEL UNIT | 1 |
12 | 77267KTR900 | RUBBER, COWL | 2 |
13 | 90111KSP860 | BOLT, SOCKET, 4X21 | 3 |
14 | 90136428870 | WASHER, TANK SETTING | 2 |
15 | 91351K21900 | O-RING, 39.5X5 | 1 |
16 | 93500040300G | SCREW, PAN, 4X30 | 1 |
17 | 9405006000 | NUT, FLANGE, 6MM | 4 |
18 | 9500202100 | CLIP, TUBE(B10) | 2 |
19 | 950058070020 | TUBE, 8X700(95005-80001-20M) | 1 |
20 | 957010601200 | BOLT, FLANGE, 6X12 | 2 |
