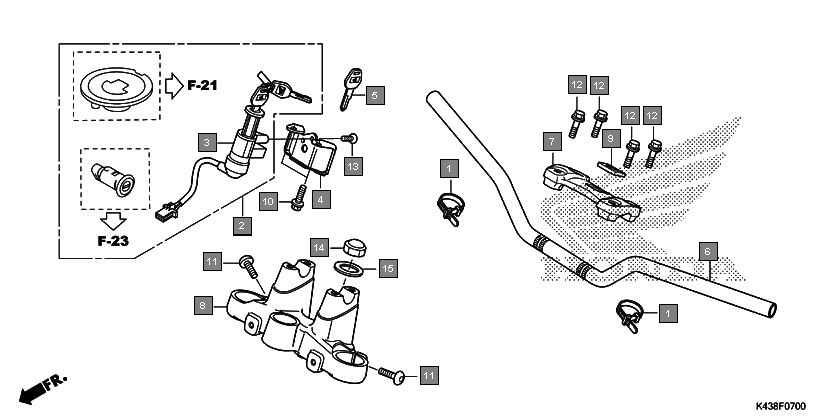

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 32161KSP920 | BAND B1, WIRE | 2 |
2 | 35010K43900 | KEY SET | 1 |
3 | 35100K38901 | SWITCH ASSY., COMBINATION & LOCK | 1 |
4 | 35105K43900 | STAY COMP., COMBINATION SWITCH | 1 |
5 | 35121KPPN01 | KEY, BLANK | 1 |
6 | 53100K43900ZA | PIPE, STEERING HANDLE *NHB07M* MAT EARL SILVER METALLIC | 1 |
7 | 53131KSPB00ZA | HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC | 1 |
8 | 53230K43900ZA | BRIDGE, FORK TOP *NH1* BLACK | 1 |
9 | 86150KWS601 | EMBLEM, PRODUCT(SJS) | 1 |
10 | 90100KYJ710 | BOLT, COMBINATION SWITCH SETTING | 2 |
11 | 90101K43900 | BOLT, SOCKET, 8X35 | 2 |
12 | 90111362000 | BOLT, FLANGE, 8X36 | 4 |
13 | 90164KPL900 | SCREW, U-LOCK FLAT, 6X12 | 2 |
14 | 90304KSP900 | NUT, STEERING STEM | 1 |
15 | 90503KSP900 | WASHER, STEERING STEM | 1 |
