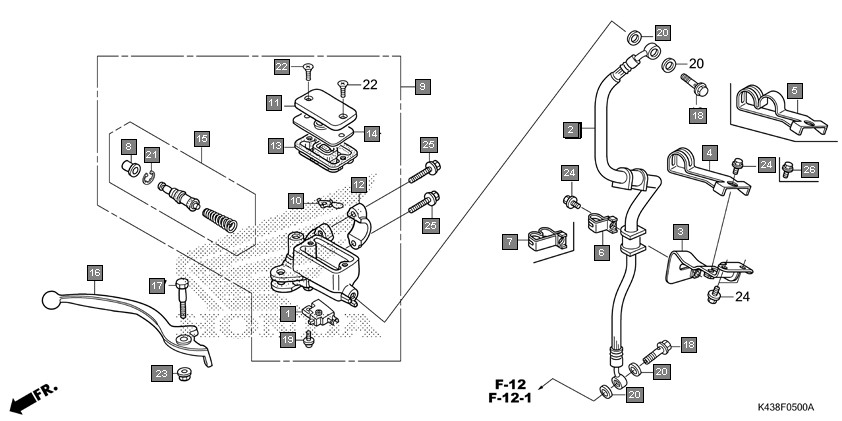

Motorcycles CB Hornet 160R CBF160MG Frame Front brake master cylinder
Ref.No. Part No. Description Oty
1 35340KSPB51 SWITCH ASSY., FR. STOP 1
2 45126K43911 HOSE COMP. A, FR. BRAKE 1
3 45126K43901 HOSE COMP. A, FR. BRAKE 1
4 45131K43900 STAY COMP., FR. BRAKE HOSE 1
5 45155K43900 CLAMPER A, FR. BRAKE HOSE 1
6 45155K43910 CLAMPER A, FR. BRAKE HOSE 1
7 45156K43900 CLAMPER B, FR. BRAKE HOSE 1
8 45156K43910 CLAMPER B, FR. BRAKE HOSE 1
9 45504410003 BOOT COMP. 1
10 45510K21901 CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) 1
11 45512MA6006 PROTECTOR 1
12 45513HA2006 CAP, MASTER CYLINDER 1
13 45517166006 HOLDER, MASTER CYLINDER 1
14 45520GE2006 DIAPHRAGM 1
15 45521K21901 PLATE, DIAPHRAGM 1
16 45530471831 CYLINDER SET, MASTER 1
17 53175KSPB51 LEVER, R. STEERING HANDLE 1
18 90114166006 BOLT, HANDLE LEVER PIVOT 1
19 90145GAZ981 BOLT, OIL, 10X22 2
20 90508K21921 SCREW-WASHER, 4X12 1
21 90545300000 WASHER, OIL BOLT 4
22 90651MA5671 CIRCLIP 1
23 93600040121G SCREW, FLAT, 4X12 2
24 9405006000 NUT, FLANGE, 6MM 1
25 960010601200 BOLT, FLANGE, 6X12 4
26 960010602200 BOLT, FLANGE, 6X22 2
