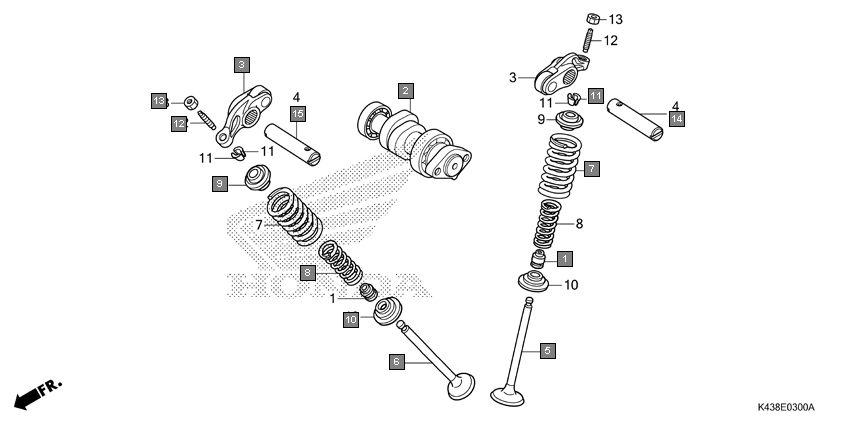

Motorcycles CB Hornet 160R CBF160MG Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 14100K38900 CAMSHAFT COMP. 1
3 14430KREG00 ARM COMP., VALVE ROCKER 2
4 14451KREG00 SHAFT, ROCKER ARM 2
5 14711K38900 VALVE, IN. 1
6 14721K38900 VALVE, EX. 1
7 14751KREG00 SPRING, VALVE OUTER 2
8 14761KREG00 SPRING, VALVE INNER 2
9 14771KREG00 RETAINER, VALVE SPRING 2
10 14777KREG00 SEAT, VALVE SPRING 2
11 14781MA6000 COTTER, VALVE 4
12 90012KK3830 SCREW, TAPPET ADJUSTING 2
13 90206250000 NUT, TAPPET ADJUSTING 2
