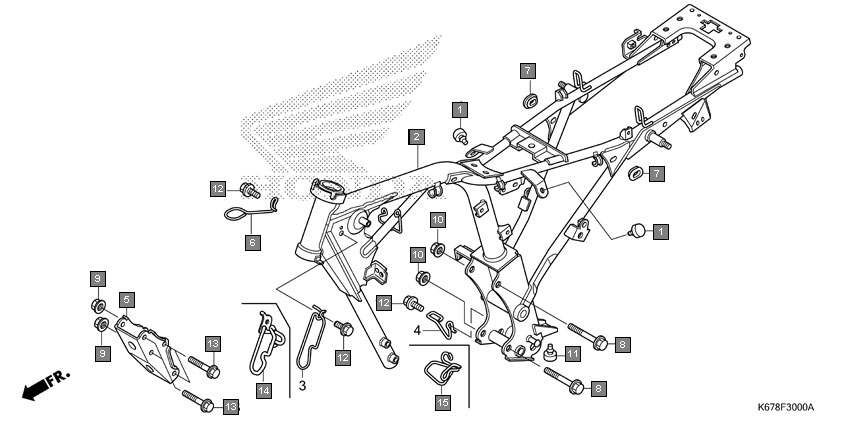

Motorcycles CB Shine SP CBF125MG Frame Frame body
Ref.No. Part No. Description Oty
1 17513K67900 RUBBER, FUEL TANK STOPPER 2
2 50100KTE650 BODY COMP., FRAME 1
3 50100KTE670 BODY COMP., FRAME 1
4 50187KTE650 GUIDE, MAIN HARNESS 1
5 50296KTE910 GUIDE, DRAIN HOSE 1
6 50351KTE910 PLATE, FR. ENGINE HANGER 1
7 50721KTE650 GUIDE, CLUTCH CABLE 1
8 83551GE2000 GROMMET, AIR CLEANER CASE 2
9 90019399010 BOLT, FLANGE, 10X110 2
10 9405008000 NUT, FLANGE, 8MM 4
11 9405010000 NUT, FLANGE, 10MM 2
12 9501162000 RUBBER B, STAND STOPPER 1
13 957010601200 BOLT, FLANGE, 6X12 3
14 958010808500 BOLT, FLANGE, 8X85 4
