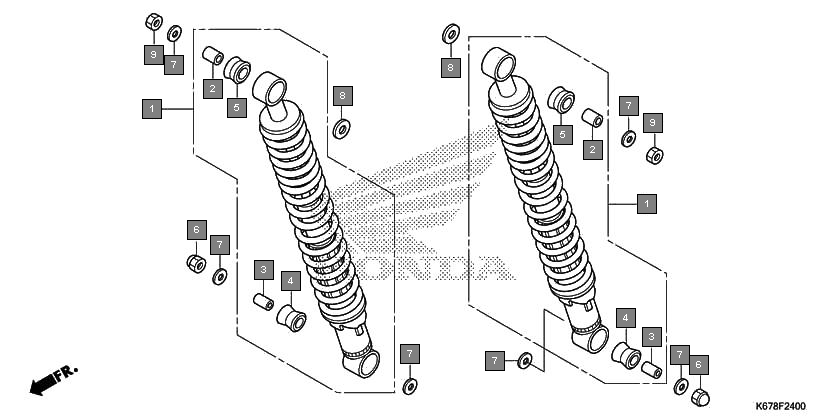

Motorcycles CB Shine SP CBF125MG Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400K67901 CUSHION ASSY., RR.(GABRIEL) 2
2 52486KWS901 COLLAR, RUBBER BUSH(GABRIEL) 2
3 52487K67901 COLLAR, RUBBER BUSH(GABRIEL) 2
4 52489K67901 RUBBER, BUSH(GABRIEL) 2
5 52489KWS901 BUSH, RUBBER(GABRIEL) 2
6 90305K67900 NUT, CAP, 10MM 2
7 90551KTE910 WASHER, SPECIAL, 10MM 6
8 90661K67900 WASHER, SPECIAL, 12MM 2
9 9403010000 NUT, HEX., 10MM 2
