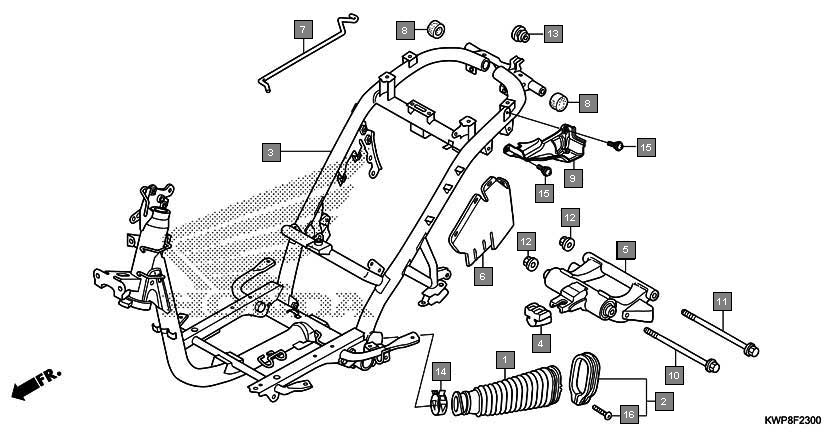

Scooters Activa SCV110F Frame Frame body
Ref.No. Part No. Description Oty
1 11345KWP900 DUCT, L. COVER 1
2 11346KCW870 BAND, L. COVER DUCT 1
3 50100KWPD01 BODY COMP., FRAME 1
4 50352GW0730 RUBBER, LINK STOPPER 1
5 50355KWPD00 LINK SUB ASSY., ENGINE HANGER 1
6 80102KWP900 PLATE, FRAME BODY SPLASH GUARD 1
7 81256KWPD00 ROD, BODY OPENER 1
8 83561KPL840 CUSHION, BODY COVER 2
9 83640KWPF00 COVER, SEAT LOCK CABLE 1
10 90105KJ9000 BOLT, FLANGE, 10X210 1
11 90106GCC000 BOLT, FLANGE, 10X238 1
12 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
13 90862GCC000 PLUG, END 1
14 91405KPL900 CLAMP, TUBE(D29) 1
15 91509GE2760 SCREW, PAN, 5X11.5 2
16 93500040250G SCREW, PAN, 4X25 1
