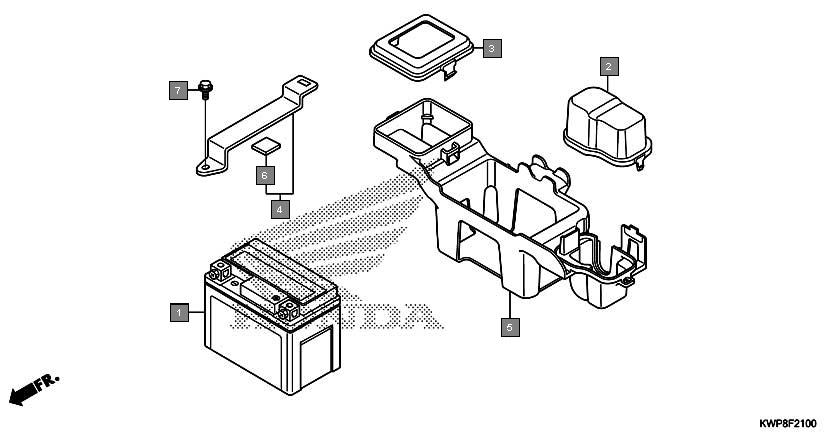

Scooters Activa SCV110F Frame Battery
Ref.No. Part No. Description Oty
1 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
2 50325KWPD01 BOX, RELAY UPPER 1
3 50325KWPE00 COVER, C.D.I. UNIT 1
4 50341KWPD00 BAND COMP., BATTERY 1
5 50381KWPE00 CASE, BATTERY 1
6 50386KWPD00 RUBBER A, BATTERY 1
7 957010601208 BOLT, FLANGE, 6X12 1
8 957020601208 BOLT, FLANGE, 6X12 1
