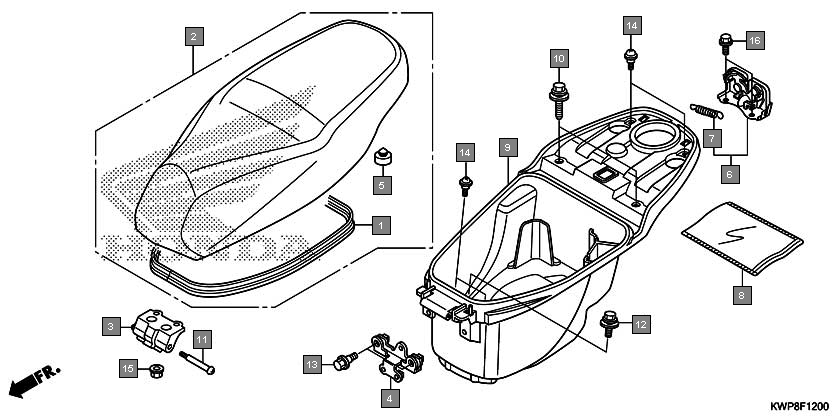

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 77115KWP900 | RUBBER, SEAL | 1 |
| 2 | 77200KWPD03ZA | SEAT COMP., DOUBLE | 1 |
| 3 | 77200KWPD12ZA | SEAT COMP., DOUBLE(VARROC) | 1 |
| 4 | 77200KWPF01ZA | SEAT COMP., DOUBLE(TS TECH) | 1 |
| 5 | 77201KWP900 | HINGE, SEAT | 1 |
| 6 | 77203KWP900 | STAY, HOOK LUGGAGE | 1 |
| 7 | 77206KG8900 | RUBBER, SEAT SETTING | 2 |
| 8 | 77235KWP900 | CATCH COMP., SEAT | 1 |
| 9 | 77236GBL000 | SPRING, SEAT CATCH | 1 |
| 10 | 77251KPL900 | BAG, SERVICE BOOK | 1 |
| 11 | 81250KWP901 | BOX, LUGGAGE | 1 |
| 12 | 90101KWP900 | BOLT-WASHER, 8X40 | 2 |
| 13 | 90105KTP900 | PIN, HINGE | 1 |
| 14 | 90107KWP900 | BOLT-WASHER, 8X16 | 1 |
| 15 | 90112KRP900 | BOLT, FLANGE, 6X18 | 2 |
| 16 | 91509GE2760 | SCREW, PAN, 5X11.5 | 4 |
| 17 | 9405006000 | NUT, FLANGE, 6MM | 2 |
| 18 | 957010601208 | BOLT, FLANGE, 6X12 | 2 |
| 19 | 957020601208 | BOLT, FLANGE, 6X12 | 2 |
