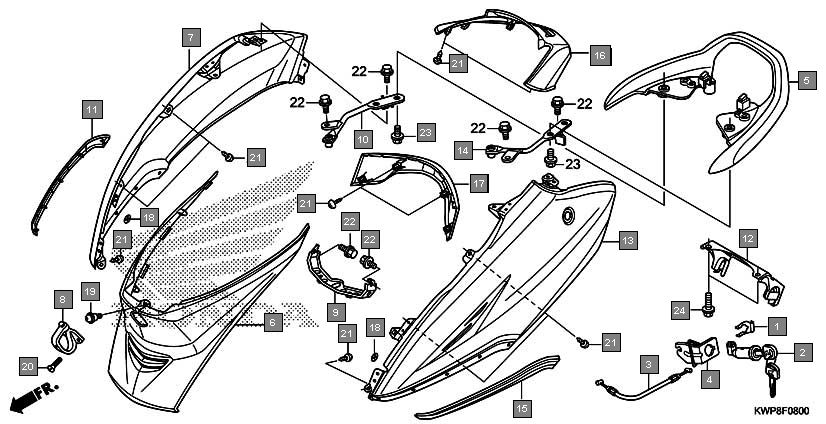

Scooters Activa SCV110F Frame Body cover
Ref.No. Part No. Description Oty
1 75582KCW870 SPRING, LOCK KEY SETTING 1
2 77239KWP901 KEY, SEAT LOCK(JAY USHIN) 1
3 77239KWPD21 KEY, SEAT LOCK(MINDA) 1
4 77240KWPF00 CABLE, SEAT LOCK 1
5 77241KWP901 STAY, SEAT LOCK 1
6 77300KWPD00ZA GRIP, RR. *NH35M* CLOUD SILVER METALLIC 1
7 80151KWPF00ZA COVER, CENTER *NH1* BLACK 1
8 83500KWPF00ZZ COVER COMP., R. BODY 1
9 83508KPL900 HOOK, LUGGAGE 1
10 83510KWPF00ZZ STAY, FR. BODY COVER 1
11 83511KWPF00ZZ PIPE, R. RR. GRIP SUPPORT 1
12 83520KWPF01 MOUL, R. BODY COVER 1
13 83560KWPF00 HINGE, BODY COVER 1
14 83600KWPF00ZZ COVER COMP., L. BODY 1
15 83611KWPF00ZZ PIPE, L. RR. GRIP SUPPORT 1
16 83620KWPF01 MOUL, L. BODY COVER 1
17 83750KWPF00ZA COVER, RR. CENTER *YR329M* MAJESTIC BROWN METALLIC 1
18 83750KWPF00ZB COVER, RR. CENTER *R357M* LUSTY RED METALLIC 1
19 83750KWPF00ZC COVER, RR. CENTER *NH1* BLACK 1
20 83750KWPF00ZD COVER, RR. CENTER *NHB63P* PEARL AMAZING WHITE 1
21 83750KWPF00ZE COVER, RR. CENTER *NHA04M* GENY GRAY METALLIC 1
22 83750KWPF00ZF COVER, RR. CENTER *B220M* TRANCE BLUE METALLIC 1
23 83751KWPF00ZA COVER, RR. CENTER LOWER *YR329M* MAJESTIC BROWN METALLIC 1
24 83751KWPF00ZB COVER, RR. CENTER LOWER *R357M* LUSTY RED METALLIC 1
25 83751KWPF00ZC COVER, RR. CENTER LOWER *NH1* BLACK 1
26 83751KWPF00ZD COVER, RR. CENTER LOWER *NHB63P* PEARL AMAZING WHITE 1
27 83751KWPF00ZE COVER, RR. CENTER LOWER *NHA04M* GENY GRAY METALLIC 1
28 83751KWPF00ZF COVER, RR. CENTER LOWER *B220M* TRANCE BLUE METALLIC 1
29 90302KPL660 NUT, PUSH, 3MM 10
30 91509GE2760 SCREW, PAN, 5X11.5 1
31 93600050120G SCREW, FLAT, 5X12 2
32 9390334380 SCREW, TAPPING, 4X12 14
33 957010601208 BOLT, FLANGE, 6X12 6
34 957020601208 BOLT, FLANGE, 6X12 6
35 957010801208 BOLT, FLANGE, 8X12 4
36 957020801208 BOLT, FLANGE, 8X12 4
37 957011002008 BOLT, FLANGE, 10X20 2
38 957021002008 BOLT, FLANGE, 10X20 2
