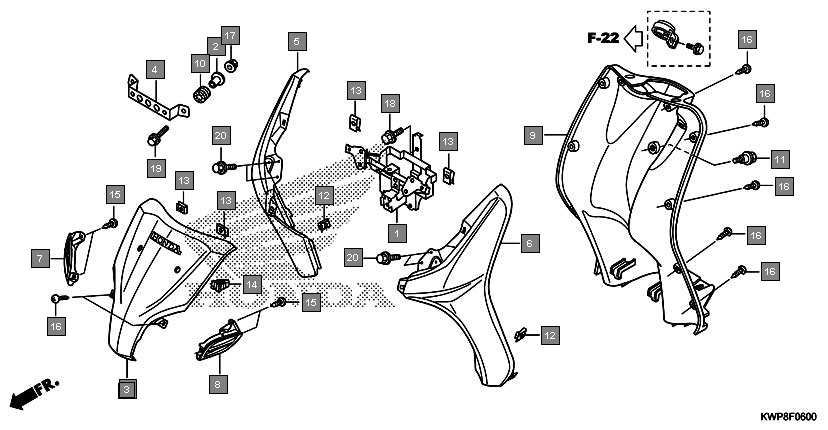

Scooters Activa SCV110F Frame Front cover
Ref.No. Part No. Description Oty
1 50330KWPF00 TRAY COMP., BATTERY 1
2 61104428000 COLLAR, FR. FENDER 2
3 64200KWPF00ZA COVER SET, FR.(WL) 1
4 64200KWPF00ZC COVER SET, FR.(WL) 1
5 64200KWPF00ZE COVER SET, FR.(WL) 1
6 64200KWPF00ZB COVER SET, FR.(WL) 1
7 64200KWPF00ZF COVER SET, FR.(WL) 1
8 64200KWPF00ZD COVER SET, FR.(WL) 1
9 64303KWPF00 STAY, FR. NUMBER PLATE 1
10 64304KWPF00ZZ COVER COMP., R. FR. 1
11 64305KWPF00ZZ COVER COMP., L. FR. 1
12 64307KWPF00 LOUVER, R. FR. COVER 1
13 64308KWPF00 LOUVER, L. FR. COVER 1
14 81131KWP900ZA COVER, INNER *NH1* BLACK 1
15 84703425000 RUBBER, TAILLIGHT MOUNTING 2
16 90111KWP900 BOLT, INNER COVER 1
17 90344KRB900 NUT, CLIP, 5MM 10
18 90344KRP900 NUT, CLIP, 5MM 4
19 90601SJA003 CLIP, SNAP FITTING 4
20 9390325280 SCREW, TAPPING, 5X12 4
21 9390325380 SCREW, TAPPING, 5X16 12
22 9405006080 NUT, FLANGE, 6MM 2
23 957010601208 BOLT, FLANGE, 6X12 3
24 957020601208 BOLT, FLANGE, 6X12 3
25 957010602507 BOLT, FLANGE, 6X25 2
26 957020602507 BOLT, FLANGE, 6X25 2
27 958010601008 BOLT, FLANGE, 6X10 4
28 958020601008 BOLT, FLANGE, 6X10 4
