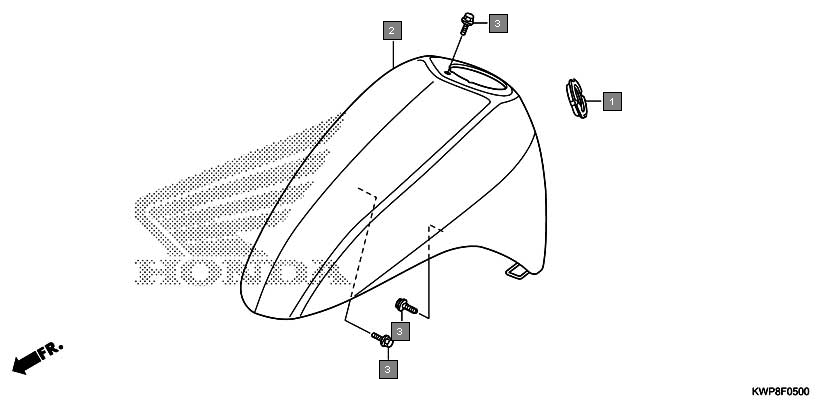

Scooters Activa SCV110F Frame Front fender
Ref.No. Part No. Description Oty
1 61105KWP910 GROMMET, FR. FENDER 1
2 61100KWPF00ZZ FENDER, FR. 1
3 958010601007 BOLT, FLANGE, 6X10 3
4 958020601007 BOLT, FLANGE, 6X10 3
