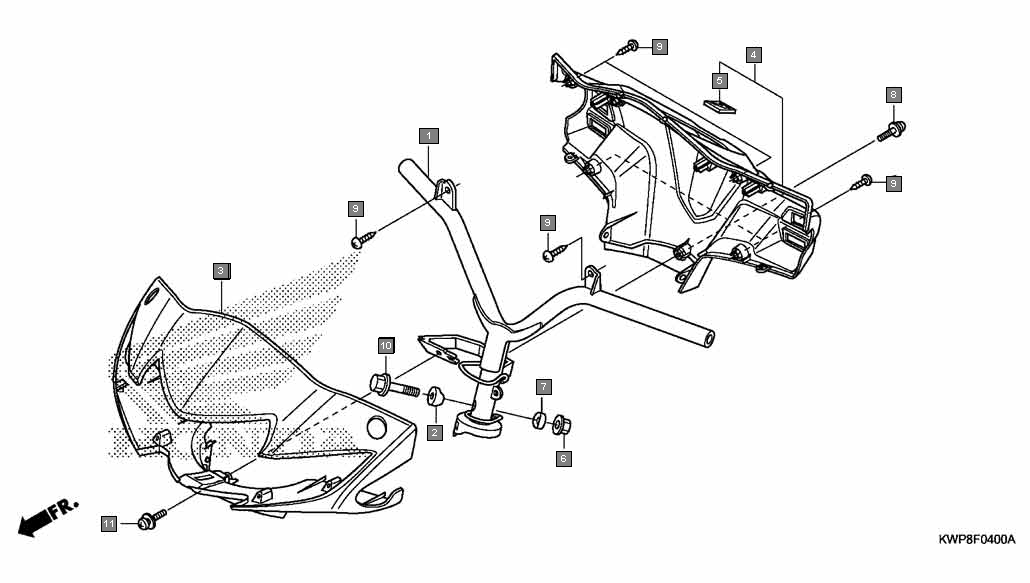

Scooters Activa SCV110F Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100KWP910 HANDLE COMP., STEERING 1
2 53124KWP900 COLLAR, HANDLE SETTING 1
3 53205KWPF00ZA COVER, FR. HANDLE *YR329M* MAJESTIC BROWN METALLIC 1
4 53205KWPF00ZB COVER, FR. HANDLE *R357M* LUSTY RED METALLIC 1
5 53205KWPF00ZC COVER, FR. HANDLE *NH1* BLACK 1
6 53205KWPF00ZD COVER, FR. HANDLE *NHB63P* PEARL AMAZING WHITE 1
7 53205KWPF00ZE COVER, FR. HANDLE *NHA04M* GENY GRAY METALLIC 1
8 53205KWPF00ZF COVER, FR. HANDLE *B220M* TRANCE BLUE METALLIC 1
9 53250KWPF00ZA COVER COMP., RR. HANDLE *NH1* BLACK 1
10 86150KWS601 EMBLEM, PRODUCT(SJS) 1
11 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
12 90502KWP900 COLLAR B, HANDLE SETTING 1
13 938910501607 SCREW-WASHER, 5X16 2
14 9390334380 SCREW, TAPPING, 4X12 6
15 958011005508 BOLT, FLANGE, 10X55 1
16 958021005508 BOLT, FLANGE, 10X55 1
17 938910501607 SCREW-WASHER, 5X16 1
