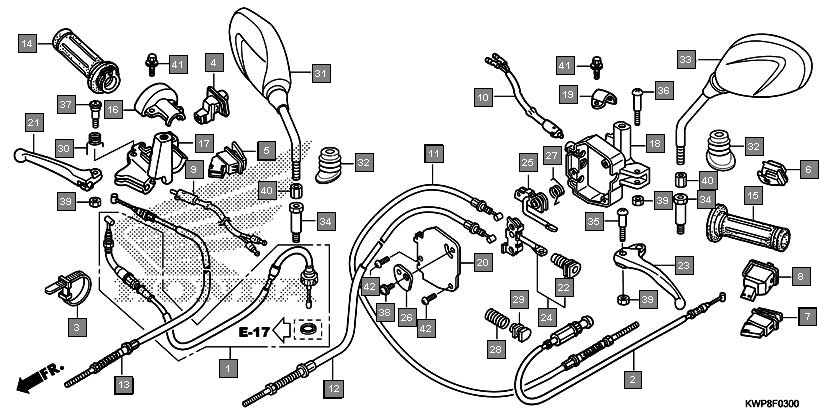

Scooters Activa SCV110F Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 06179KZK901 CABLE SET, THROTTLE 1
2 17950KWP900 CABLE COMP., CHOKE 1
3 32161KSP920 BAND B1, WIRE 1
4 35150KWPD11 SWITCH UNIT, LIGHTING(MINDA) 1
5 35150KZK901 SWITCH UNIT, LIGHTING(JAY USHIN) 1
6 35160KWP901 SWITCH UNIT, STARTER 1
7 35170KPL901 SWITCH UNIT, DIMMER(MINDA) 1
8 35170KPL842 SWITCH UNIT, DIMMER(JAY USHIN) 1
9 35180KWP901 SWITCH UNIT, HORN 1
10 35200KVT911 SWITCH UNIT, WINKER(JAY USHIN) 1
11 35200KWP901 SWITCH UNIT, WINKER(MINDA) 1
12 35340KWP900 SWITCH ASSY., FR. STOP 1
13 35340KWPF01 SWITCH ASSY., FR. STOP 1
14 43450KWP910 CABLE COMP., RR. BRAKE 1
15 45440KWP910 CABLE COMP., L. FR. BRAKE 1
16 45450KWP910 CABLE COMP., R. FR. BRAKE 1
17 53146KRB901 GRIP COMP., THROTTLE 1
18 53166KPL901 GRIP, L. HANDLE 1
19 53167KPL900 HOUSING, UPPER THROTTLE 1
20 53168KWP900 HOUSING, UNDER THROTTLE 1
21 53172KWP910 BRACKET, L. BRAKE LEVER 1
22 53173KPL900 BAND, HANDLE BRACKET 1
23 53173KWP910 COVER, L. BRAKE LEVER BRACKET 1
24 53175KWPD00 LEVER, R. STEERING HANDLE 1
25 53176GBL870 BOOT, BRAKE LEVER ROD 1
26 53178KWPD00 LEVER, L. STEERING HANDLE 1
27 53180KWP910 EQUALIZER COMP. 1
28 53185KWP910 ARM COMP., RR. BRAKE LOCK 1
29 53186GBL870 COVER, RR. BRAKE LOCK LEVER 1
30 53186KWP910 SPRING, BRAKE LOCK ARM RETURN 1
31 53188K24900 SPRING, DELAY 1
32 53189K24900 STOPPER, EQUALIZER 1
33 53199KZN910 SPRING, BRAKE LEVER RETURN 1
34 88110KWPF01 MIRROR ASSY., R. BACK 1
35 88113KRP901 CAP, LOCK NUT 2
36 88120KWPF01 MIRROR ASSY., L. BACK 1
37 90102KWP900 BOLT, ADAPTER, 8MM 2
38 90115KPL900 SCREW, HANDLE LEVER PIVOT 1
39 90115KRP980 SCREW, HANDLE LEVER PIVOT 1
40 90115KZN910 SCREW, HANDLE LEVER PIVOT 1
41 90118KWP910 SCREW, PAN, 5X13 1
42 90304KPL900 NUT, HEX., 5MM 3
43 90310KPL900 LOCK NUT, R. MIRROR (LEFT HAND THREAD) 2
44 934010602000 BOLT-WASHER, 6X20 2
45 93500050121H SCREW, PAN, 5X12 2
