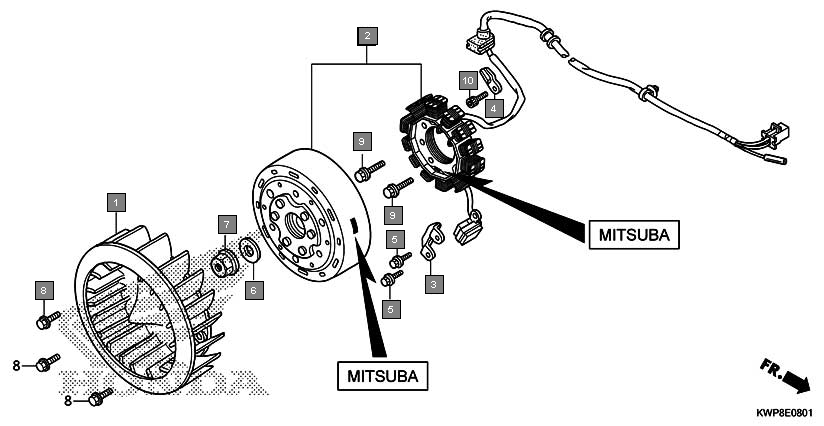

Scooters Activa SCV110F Engine Generator(mitsuba)
Ref.No. Part No. Description Oty
1 19510KWPD00 FAN COMP., COOLING 1
2 31100KWPD21 GENERATOR ASSY., A.C.(MITSUBA) 1
3 32907GGC900 CLIP, A.C. GENERATOR CORD 1
4 32976107010 CLAMPER, WIRE HARNESS 1
5 90002KGH900 BOLT, FLANGE, 5X14 2
6 90410GCC000 WASHER, 10MM 1
7 9405010000 NUT, FLANGE, 10MM 1
8 957010601600 BOLT, FLANGE, 6X16 3
9 957020601600 BOLT, FLANGE, 6X16 3
10 960010602200 BOLT, FLANGE, 6X22 2
11 966000601600 BOLT, SOCKET, 6X16 1
