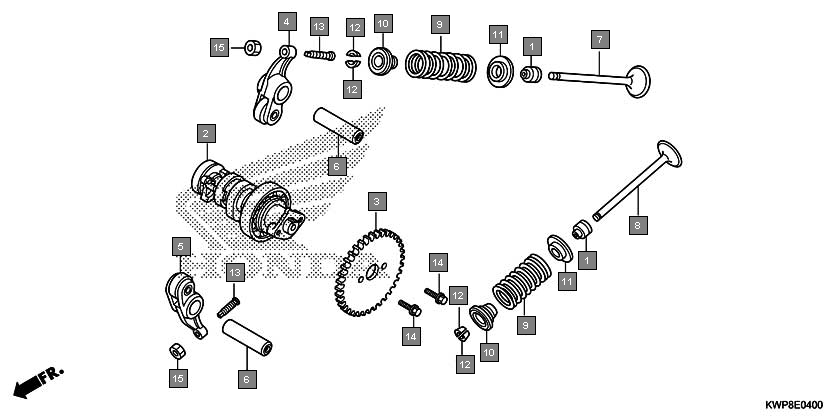

Scooters Activa SCV110F Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 14100KWPD00 CAMSHAFT COMP. 1
3 14321KWP900 SPROCKET, CAM(34T) 1
4 14430KWP900 ARM COMP., IN. VALVE ROCKER 1
5 14440KWP900 ARM COMP., EX. VALVE ROCKER 1
6 14461GCC000 SHAFT, EX. ROCKER ARM (IN./EX.)(INLET SIDE) 2
7 14711KVY900 VALVE, IN. 1
8 14721KVY900 VALVE, EX. 1
9 14751KWP900 SPRING, VALVE 2
10 14771GB4680 RETAINER, VALVE SPRING 2
11 14775KWP900 SEAT, VALVE SPRING 2
12 14781KPL900 COTTER, VALVE 4
13 90012KWW740 SCREW, TAPPET ADJUSTING 2
14 90083KRM840 BOLT, KNOCK, 5MM 2
15 90206KPL900 NUT, TAPPET ADJUSTING 2
