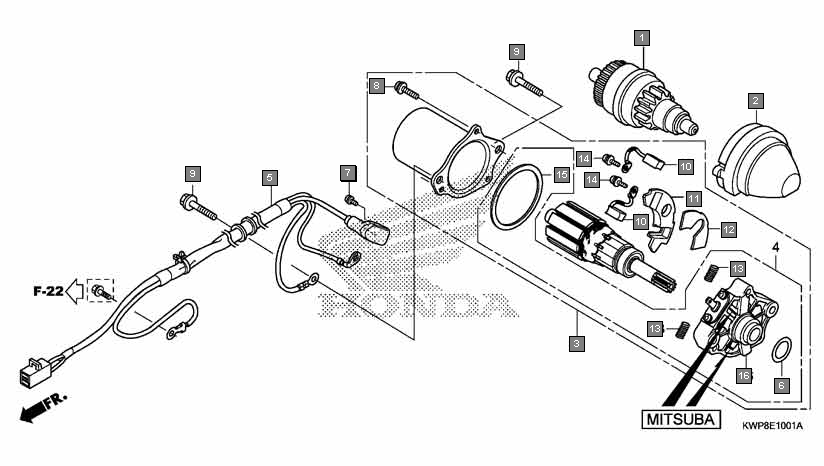

Scooters Activa SCV110F Engine Starting motor(mitsuba)
Ref.No. Part No. Description Oty
1 28120KVB901 PINION ASSY., STARTER(14/40T) 1
2 28150KPL900 HOLDER COMP., STARTER PINION 1
3 31210KZK901 MOTOR UNIT, STARTER(MITSUBA) 1
4 31214KZK901 BRACKET COMP., FR. 1
5 32105KWPE02 HARNESS COMP., STARTING MOTOR 1
6 91309KEE630 O-RING 1
7 938920501608 SCREW-WASHER, 5X16 3
8 960010603500 BOLT, FLANGE, 6X35 2
