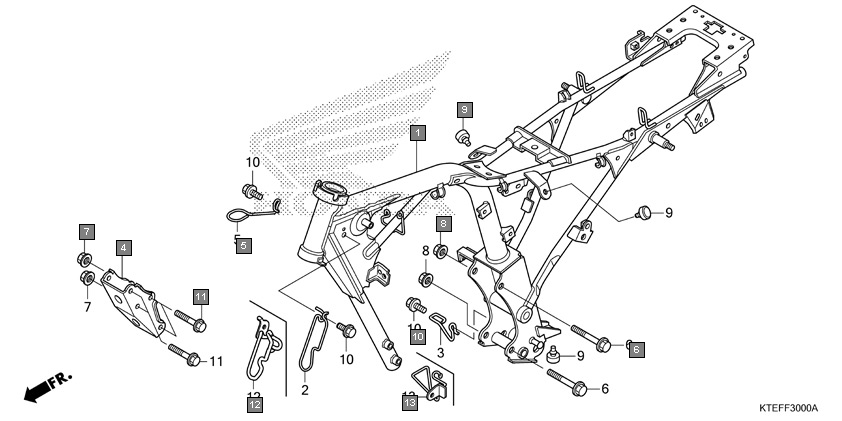

Motorcycles CB Shine CBF125F Frame Frame body
Ref.No. Part No. Description Oty
1 50100KTE650 BODY COMP., FRAME 1
2 50100KTE670 BODY COMP., FRAME 1
3 50187KTE650 GUIDE, MAIN HARNESS 1
4 50296KTE910 GUIDE, DRAIN HOSE 1
5 50351KTE910 PLATE, FR. ENGINE HANGER 1
6 50721KTE650 GUIDE, CLUTCH CABLE 1
7 90019399010 BOLT, FLANGE, 10X110 2
8 9405008000 NUT, FLANGE, 8MM 4
9 9405010000 NUT, FLANGE, 10MM 2
10 9501162000 RUBBER B, STAND STOPPER 3
11 957010601200 BOLT, FLANGE, 6X12 3
12 957020601200 BOLT, FLANGE, 6X12 3
13 958010808500 BOLT, FLANGE, 8X85 4
14 958020808500 BOLT, FLANGE, 8X85 4
