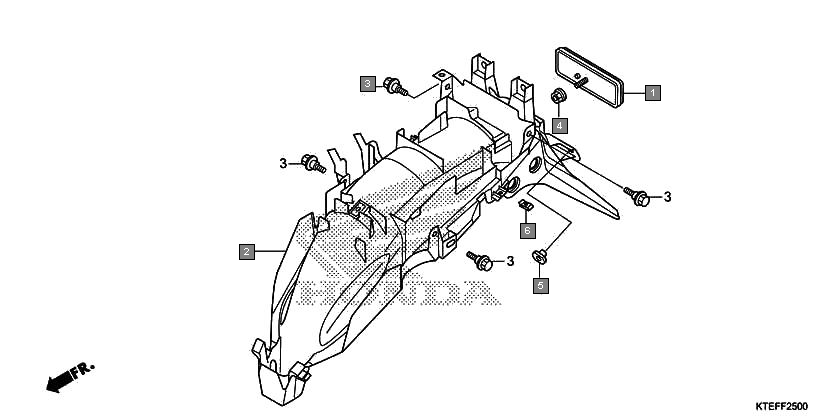

Motorcycles CB Shine CBF125F Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 80101KTE650 FENDER, RR. 1
3 90111162000 BOLT, FLANGE, 6MM 4
4 90301KWN901 NUT, U, 5MM 1
5 90311KTE910 NUT, RR. FENDER 2
6 90344KTE910 NUT, CLIP, 4MM 2
