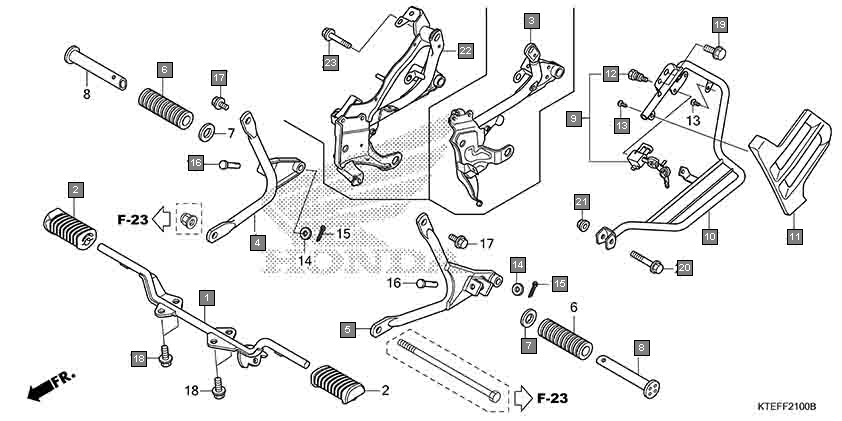

Motorcycles CB Shine CBF125F Frame Step
Ref.No. Part No. Description Oty
1 50610KTE670 BAR COMP., STEP 1
2 50610KTE650 BAR COMP., STEP 1
3 50660KTE650 RUBBER, STEP 2
4 50701KTE670 BRACKET COMP., R. PILLION STEP 1
5 50701KTE910 BRACKET COMP., R. PILLION STEP 1
6 50702KTE910 BRACKET COMP., L. PILLION STEP 1
7 50710KTE910 RUBBER, PILLION STEP 2
8 50712405000 WASHER, PILLION STEP 2
9 50715405000 BAR, PILLION STEP 2
10 50730K14900 HOLDER SET, HELMET 1
11 51103KTE650 GUARD A, SARI 1
12 51104K14900 GUARD B, SARI 1
13 90107449000 BOLT, HELMET HOLDER SETTING 1
14 9390335220 SCREW, TAPPING, 5X12 2
15 9410106000 WASHER, PLAIN, 6MM 2
16 9420116150 PIN, SPLIT, 1.6X15 2
17 9501581000 PIN A, PILLION STEP 2
18 957010801600 BOLT, FLANGE, 8X16 2
19 957020801600 BOLT, FLANGE, 8X16 2
20 957010802000 BOLT, FLANGE, 8X20 4
21 957020802000 BOLT, FLANGE, 8X20 4
22 957010802007 BOLT, FLANGE, 8X20 2
23 957020802007 BOLT, FLANGE, 8X20 2
24 957010803500 BOLT, FLANGE, 8X35 1
25 957020803500 BOLT, FLANGE, 8X35 1
26 9405008000 NUT, FLANGE, 8MM 1
