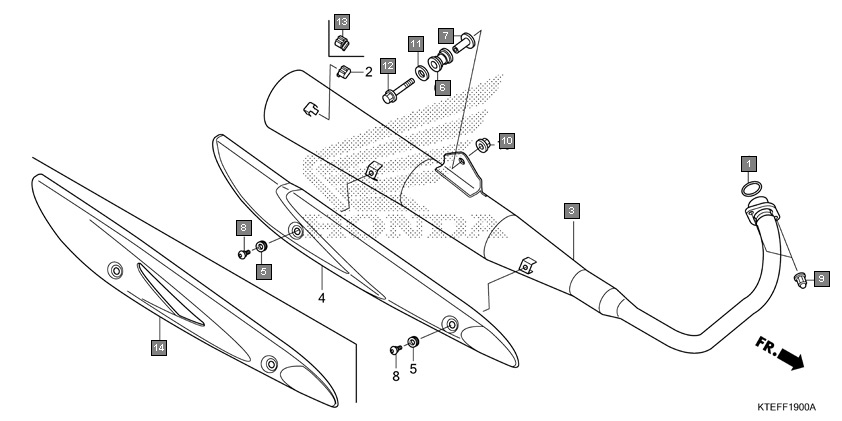

Motorcycles CB Shine CBF125F Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18291KSP901 GASKET, EX. PIPE 1
2 18293MCAA20 RUBBER, PROTECTOR PACKING 1
3 18300KTE650 MUFFLER COMP., EX. 1
4 18311KTE650 COVER, MUFFLER 1
5 18311KTE670 COVER, MUFFLER 1
6 18345MBT610 RUBBER, PROTECTOR MOUNTING 2
7 18421438670 RUBBER, MUFFLER MOUNTING 1
8 18442KRC900 COLLAR, MUFFLER MOUNTING 1
9 90113KYJ710 SCREW, PAN, 6X12 2
10 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
11 9405010000 NUT, FLANGE, 10MM 1
12 9410310000 WASHER, PLAIN, 10MM 1
13 958011005500 BOLT, FLANGE, 10X55 1
14 958021005500 BOLT, FLANGE, 10X55 1
