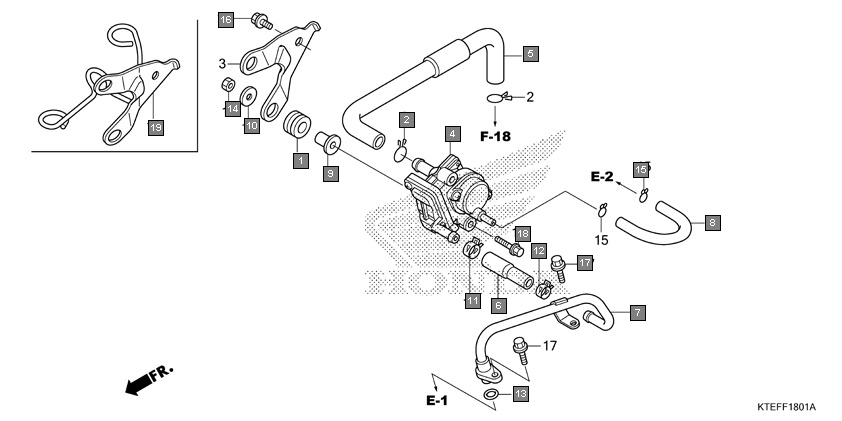

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11344MB0000 | GROMMET A, RR. COVER(8X16X6.6) | 2 |
| 2 | 17316611000 | CLIP, BREATHER TUBE | 2 |
| 3 | 17365KTE650 | STAY, AIR SUCTION VALVE | 1 |
| 4 | 18600KTE912 | VALVE ASSY., AIR SUCTION | 1 |
| 5 | 18601KTE910 | TUBE A, AIR SUCTION VALVE | 1 |
| 6 | 18602KTE910 | TUBE B, AIR SUCTION VALVE | 1 |
| 7 | 18640KTE600 | PIPE COMP., AIR FEED | 1 |
| 8 | 18655KTE910 | TUBE, AIR SUCTION VALVE(PB) | 1 |
| 9 | 83119GT4000 | COLLAR, METER | 2 |
| 10 | 90450ZA0000 | WASHER, PLAIN, 6X16 | 2 |
| 11 | 90678MR1690 | CLIP, HOSE | 1 |
| 12 | 90682SA0670 | CLAMP, CANISTER HOSE | 1 |
| 13 | 91309MJ0003 | O-RING, 9.8X2.8(ARAI) | 1 |
| 14 | 94001060000S | NUT, HEX., 6MM | 2 |
| 15 | 9500202070 | CLIP, TUBE(B7) | 2 |
| 16 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
| 17 | 957020601200 | BOLT, FLANGE, 6X12 | 1 |
| 18 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
| 19 | 957020601600 | BOLT, FLANGE, 6X16 | 2 |
| 20 | 960010602500 | BOLT, FLANGE, 6X25 | 2 |
