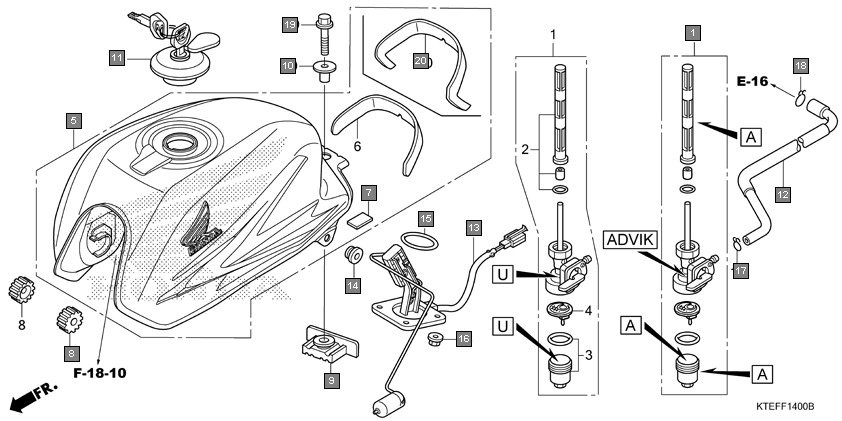

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16950KCC901 | COCK ASSY., FUEL | 1 |
| 2 | 16952KTE910 | SCREEN SET, FUEL STRAINER | 1 |
| 3 | 16953KTE910 | CUP SET, FUEL STRAINER | 1 |
| 4 | 16959KTE910 | FILTER, CUP | 1 |
| 5 | 17500KTE650ZA | TANK ASSY., FUEL(WL) *TYPE5* | 1 |
| 6 | 17500KTE650ZB | TANK ASSY., FUEL(WL) *TYPE4* | 1 |
| 7 | 17500KTE650ZC | TANK ASSY., FUEL(WL) *TYPE3* | 1 |
| 8 | 17500KTE650ZD | TANK ASSY., FUEL(WL) *TYPE2* | 1 |
| 9 | 17500KTE650ZE | TANK ASSY., FUEL(WL) *TYPE1* | 1 |
| 10 | 17506KTE650 | FILM, TANK PROTECTOR | 1 |
| 11 | 17507KTE650 | FILM, TANK PROTECTOR SMALL | 2 |
| 12 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
| 13 | 17613KTE910 | RUBBER, FUEL TANK RR. | 1 |
| 14 | 17614KR3000 | COLLAR, FUEL TANK MOUNTING | 1 |
| 15 | 17620KSP911 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 |
| 16 | 17681KTE650 | TUBE, FUEL | 1 |
| 17 | 37800KTE651 | FUEL UNIT | 1 |
| 18 | 83551376000 | GROMMET, SIDE COVER | 2 |
| 19 | 91305443740 | O-RING, 39.5X5 | 1 |
| 20 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 21 | 9500202080 | CLIP, TUBE(B8) | 1 |
| 22 | 9500250000 | CLIP, TUBE(C9) | 1 |
| 23 | 957010802800 | BOLT, FLANGE, 8X28 | 1 |
| 24 | 957020802800 | BOLT, FLANGE, 8X28 | 1 |
| 25 | 17500KTE650ZH | TANK ASSY., FUEL(WL) *TYPE9 1* | 1 |
| 26 | 17500KTE650ZJ | TANK ASSY., FUEL(WL) *TYPE8* | 1 |
| 27 | 17500KTE650ZK | TANK ASSY., FUEL(WL) *TYPE7 2* | 1 |
| 28 | 17500KTE650ZL | TANK ASSY., FUEL(WL) *TYPE7 1* | 1 |
| 29 | 17500KTE650ZM | TANK ASSY., FUEL(WL) *TYPE6 2* | 1 |
| 30 | 17500KTE650ZN | TANK ASSY., FUEL(WL) *TYPE6 1* | 1 |
| 31 | 17500KTE650ZP | TANK ASSY., FUEL(WL) *TYPE10* | 1 |
| 32 | 17500KTE650ZQ | TANK ASSY., FUEL(WL) *TYPE9 3* | 1 |
| 33 | 17500KTE650ZR | TANK ASSY., FUEL(WL) *TYPE9* | 1 |
| 34 | 17500KTE650ZS | TANK ASSY., FUEL(WL)*TYPE7* | 1 |
| 35 | 17500KTE650ZT | TANK ASSY., FUEL(WL)*TYPE6* | 1 |
