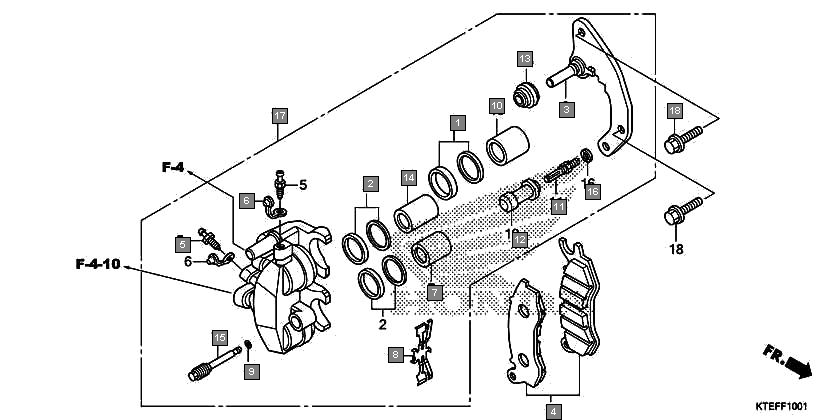

Motorcycles CB Shine CBF125F Frame Front brake caliper(cbs)
Ref.No. Part No. Description Oty
1 06451GE2405 SEAL SET, PISTON 1
2 06451MZ2405 SEAL SET, PISTON 2
3 06453K21921 BRACKET SUB ASSY., R. FR. 1
4 06455K21921 PAD SET, FR. 1
5 43352568003 SCREW, BLEEDER(NISSIN) 2
6 43353461771 CAP, BLEEDER 2
7 45107MAJG41 PISTON A, 22X27 1
8 45108KWN931 SPRING, PAD 1
9 45111MAJG41 RING, STOPPER 1
10 45117MAJG41 PISTON A, 25X27 1
11 45131GZ0006 BOLT, PIN 1
12 45132166016 BOOT, PIN BUSH(NISSIN) 1
13 45133MA3006 BOOT B 1
14 45207MAJG41 PISTON B, 22X35 1
15 45215KPH951 PIN, HANGER 1
16 45216166006 WASHER, WAVE 1
17 45250KTE671 CALIPER SUB ASSY., R. FR. (NISSIN) 1
18 90155KSP900 BOLT, FLANGE, 8X25 2
