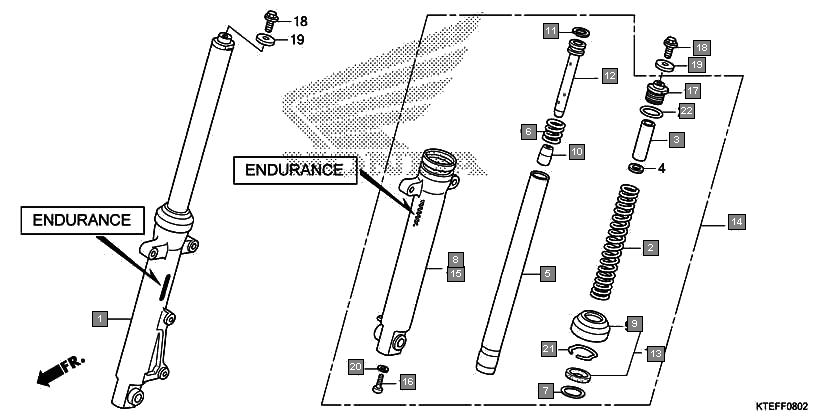

Motorcycles CB Shine CBF125F Frame Front fork(endurance)(disk brake)
Ref.No. Part No. Description Oty
1 51400KTE672 FORK ASSY., R. FR.(ETPL) 1
2 51400KTE613 FORK ASSY., R. FR.(ETPL) 2
3 51400KTE612 FORK ASSY., R. FR.(ETPL) 1
4 51401KTE602 SPRING, FR. FORK(ETPL) 2
5 51403KTE602 COLLAR, OIL LOCK(ETPL) 2
6 51404K23902 JOINT, SPRING 2
7 51410KTE602 PIPE COMP., FR. FORK(ETPL) 2
8 51412K23902 SPRING, REBOUND 2
9 51413K23902 RING, BACK UP 2
10 51420KTE673 Case Fr. Bottom (R) 1
11 51420KTE613 Case Fr. Bottom (R) 1
12 51425KTE603 Seal Dust 2
13 51432KTE672 PIECE, OIL LOCK(ETPL) 2
14 51432KTE602 PIECE, OIL LOCK(ETPL) 2
15 51437K23902 RING, PISTON 2
16 51440KTE602 PIPE, SEAT(ETPL) 2
17 51490KTE603 Seal Set Fr. Fork 2
18 51500KTE672 FORK ASSY., L. FR.(ETPL) 1
19 51500KTE612 FORK ASSY., L. FR.(ETPL) 1
20 51520KTE613 Case Fr. Bottom (L) 1
21 90116K23902 BOLT, SOCKET, 8MM 2
22 90123K23902 BOLT A, FR. FORK 2
23 51500KTE613 FORK ASSY., L. FR.(ETPL) 1
24 90123KRM860 BOLT, FR. FORK 2
25 90521KSP900 WASHER, 10.3MM 2
26 90544K23902 WASHER, SPECIAL, 8MM 2
27 90651K23902 RING, OIL SEAL STOP 2
28 91351K23902 O-RING 2
