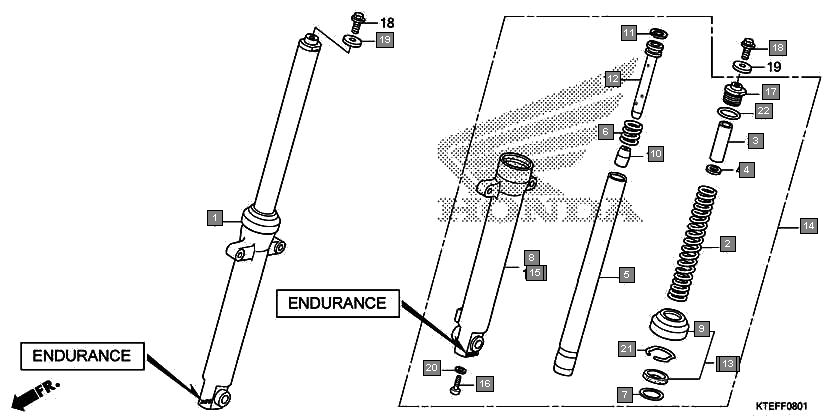

Motorcycles CB Shine CBF125F Frame Front fork(endurance)(drum brake)
Ref.No. Part No. Description Oty
1 51400KTE602 FORK ASSY., R. FR.(ETPL) 1
2 51401KTE602 SPRING, FR. FORK(ETPL) 2
3 51403KTE602 COLLAR, OIL LOCK(ETPL) 2
4 51404K23902 JOINT, SPRING 2
5 51410KTE602 PIPE COMP., FR. FORK(ETPL) 2
6 51412K23902 SPRING, REBOUND 2
7 51413K23902 RING, BACK UP 2
8 51420KTE603 Case Fr. Bottom (R)(ETPL) 1
9 51425KTE603 Seal Dust 2
10 51432KTE602 PIECE, OIL LOCK(ETPL) 2
11 51437K23902 RING, PISTON 2
12 51440KTE602 PIPE, SEAT(ETPL) 2
13 51490KTE603 Seal Set Fr. Fork 2
14 51500KTE602 FORK ASSY., L. FR.(ETPL) 1
15 51520KTE603 Case Fr. Bottom (L)(ETPL) 1
16 90116K23902 BOLT, SOCKET, 8MM 2
17 90123K23902 BOLT A, FR. FORK 2
18 90123KRM860 BOLT, FR. FORK 2
19 90521KSP900 WASHER, 10.3MM 2
20 90544K23902 WASHER, SPECIAL, 8MM 2
21 90651K23902 RING, OIL SEAL STOP 2
22 91351K23902 O-RING 2
