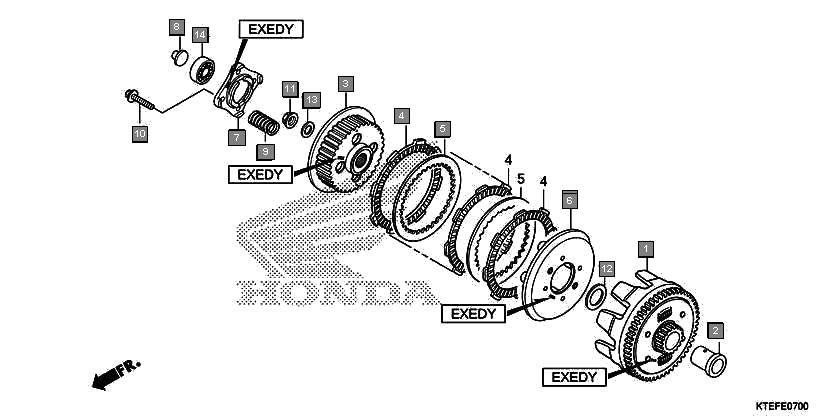

Motorcycles CB Shine CBF125F Engine Clutch(exedy)
Ref.No. Part No. Description Oty
1 22100KTE652 OUTER COMP., CLUTCH(EXEDY) 1
2 22115KSP910 GUIDE, CLUTCH OUTER 1
3 22120KTE652 CENTER, CLUTCH(EXEDY) 1
4 22201KTE652 DISK, CLUTCH FRICTION(EXEDY) 4
5 22321KTE652 PLATE, CLUTCH(EXEDY) 3
6 22355KTE652 PLATE, CLUTCH PRESSURE(EXEDY) 1
7 22361KTE652 PLATE, CLUTCH LIFTER(EXEDY) 1
8 22366KRM840 ROD, CLUTCH LIFTER 1
9 22401KTE652 SPRING, CLUTCH(EXEDY) 4
10 90050KFL850 BOLT, SPECIAL FLANGE, 6X25 4
11 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
12 90401KTE910 WASHER, PLAIN, 17MM 1
13 90501KPTA00 WASHER, 14.1X29X2.8 1
14 961006003000 BEARING, RADIAL BALL, 6003 1
