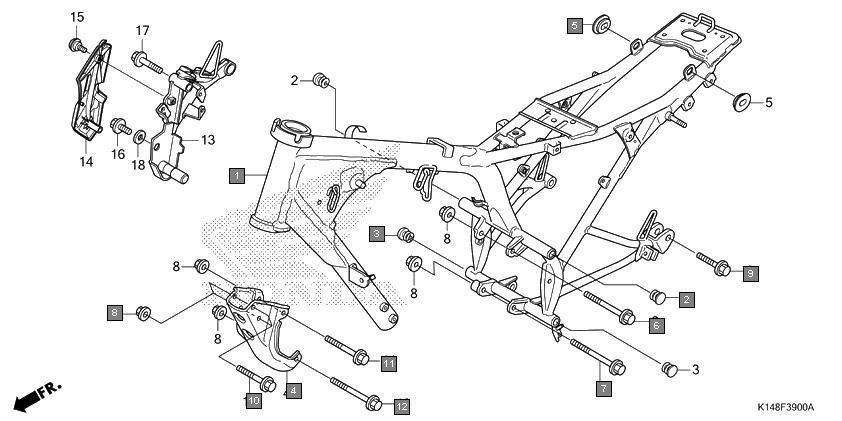

Motorcycles Dream Yuga CB110ME Frame Frame body
Ref.No. Part No. Description Oty
1 50100K14930 BODY COMP., FRAME 1
2 50315H06000 CAP, PIPE END 2
3 50315KYY900 CAP, PIPE END 2
4 50351K14910 PLATE, FR. ENGINE HANGER 1
5 83542KPN900 GROMMET, SIDE COVER 2
6 90019399010 BOLT, FLANGE, 10X110 1
7 90132K14900 BOLT, FLANGE, 10X135 1
8 9405010000 NUT, FLANGE, 10MM 6
9 957020803500 BOLT, FLANGE, 8X35 1
10 957010803500 BOLT, FLANGE, 8X35 1
11 958011006500 BOLT, FLANGE, 10X65 2
12 958021006500 BOLT, FLANGE, 10X65 2
13 958021008500 BOLT, FLANGE, 10X85 1
14 958011008500 BOLT, FLANGE, 10X85 1
15 958011009500 BOLT, FLANGE, 10X95 1
16 958021009500 BOLT, FLANGE, 10X95 1
