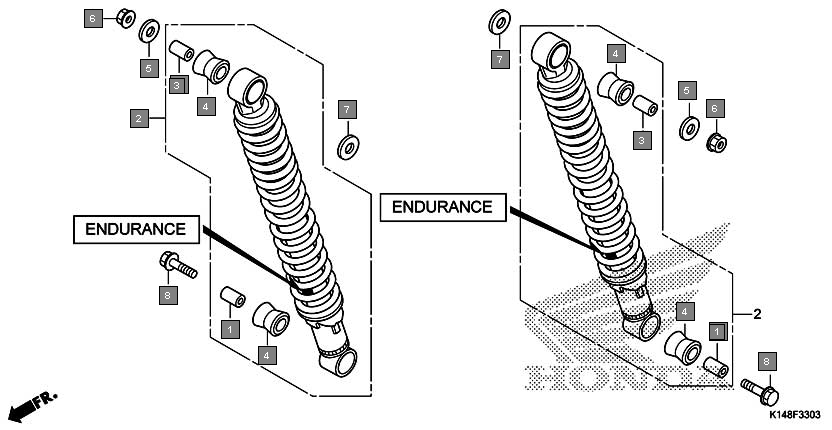

Motorcycles Dream Yuga CB110ME Frame Rear cushion(cb110e/me/amf)(endurance)
Ref.No. Part No. Description Oty
1 52400K14933 CUSHION ASSY., RR.(ENDURANCE) 2
2 52400K14673 CUSHION ASSY., RR.(ENDURANCE) 2
3 52495K23902 BUSH, RUBBER(ENDURANCE) 4
4 90551KTE910 WASHER, SPECIAL, 10MM 2
5 9405010000 NUT, FLANGE, 10MM 2
6 9410112000 WASHER, PLAIN, 12MM 2
7 958021003500 BOLT, FLANGE, 10X35 2
8 958011003500 BOLT, FLANGE, 10X35 2
9 52486K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
10 52485K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
