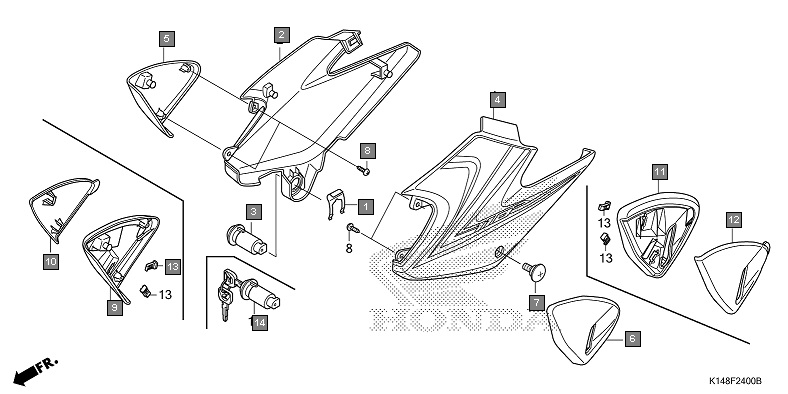

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 75581GN8920 | SPRING, LOCK KEY SETTING | 1 |
2 | 83520K14670ZB | COVER SET, R. SIDE(WL)*TYPE4* | 1 |
3 | 83520K14670ZD | COVER SET, R. SIDE(WL)*TYPE2* | 1 |
4 | 83520K14670ZC | COVER SET, R. SIDE(WL)*TYPE3* | 1 |
5 | 83520K14930ZD | COVER SET, R. SIDE(WL)*TYPE2* | 1 |
6 | 83520K14930ZC | COVER SET, R. SIDE(WL)*TYPE3* | 1 |
7 | 83520K14930ZE | COVER SET, R. SIDE(WL)*TYPE1* | 1 |
8 | 83520K14930ZA | COVER SET, R. SIDE(WL)*TYPE5* | 1 |
9 | 83520K14930ZB | COVER SET, R. SIDE(WL)*TYPE4* | 1 |
10 | 83520K14670ZA | COVER SET, R. SIDE(WL)*TYPE5* | 1 |
11 | 83520K14670ZE | COVER SET, R. SIDE(WL)*TYPE1* | 1 |
12 | 83550K14931 | LOCK, SIDE COVER(MINDA) | 1 |
13 | 83620K14900ZA | COVER SET, L. SIDE(WL)*TYPE5* | 1 |
14 | 83620K14900ZE | COVER SET, L. SIDE(WL)*TYPE1* | 1 |
15 | 83620K14900ZB | COVER SET, L. SIDE(WL)*TYPE4* | 1 |
16 | 83620K14670ZB | COVER SET, L. SIDE(WL)*TYPE4* | 1 |
17 | 83620K14670ZE | COVER SET, L. SIDE(WL)*TYPE1* | 1 |
18 | 83620K14900ZD | COVER SET, L. SIDE(WL)*TYPE2* | 1 |
19 | 83620K14670ZA | COVER SET, L. SIDE(WL)*TYPE5* | 1 |
20 | 83620K14900ZC | COVER SET, L. SIDE(WL)*TYPE3* | 1 |
21 | 83620K14670ZD | COVER SET, L. SIDE(WL)*TYPE2* | 1 |
22 | 83620K14670ZC | COVER SET, L. SIDE(WL)*TYPE3* | 1 |
23 | 83740K14900 | LID, R. SIDE COVER | 1 |
24 | 83840K14900 | LID, L. SIDE COVER | 1 |
25 | 90103K14900 | BOLT, COWL SETTING | 1 |
26 | 9390324220 | SCREW, TAPPING, 4X10 | 4 |
27 | 83620K14A30ZA | COVER SET, L. SIDE(WL) *TYPE6* | 1 |
