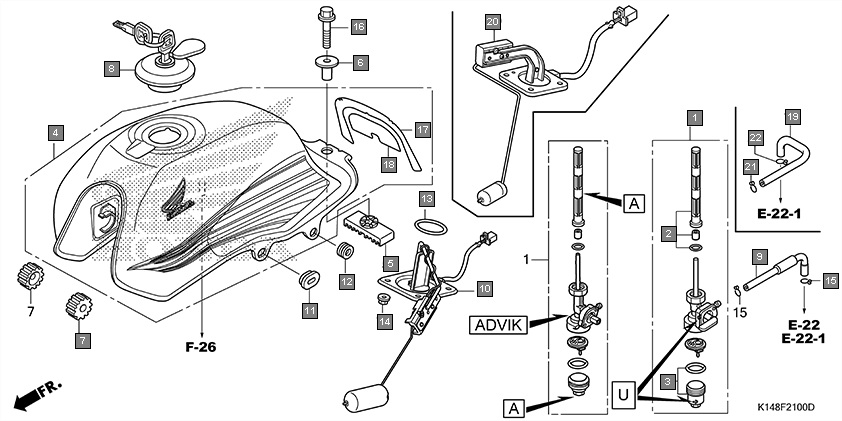

Motorcycles Dream Yuga CB110ME Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950KZAW01 COCK ASSY., FUEL(UCAL) 1
2 16954KZAW00 SCREEN SET, FUEL STRAINER (UCAL) 1
3 16955KZAW00 CUP SET, FUEL STRAINER(UCAL) 1
4 17520K14670ZD TANK ASSY., FUEL(WL)*TYPE2* 1
5 17520K14930ZC TANK ASSY., FUEL(WL)*TYPE4* 1
6 17520K14670ZE TANK ASSY., FUEL(WL)*TYPE1* 1
7 17520K14930ZB TANK ASSY., FUEL(WL)*TYPE5* 1
8 17520K14670ZC TANK ASSY., FUEL(WL)*TYPE3* 1
9 17520K14930ZD TANK ASSY., FUEL(WL)*TYPE3* 1
10 17520K14930ZE TANK ASSY., FUEL(WL)*TYPE2* 1
11 17520K14930ZF TANK ASSY., FUEL(WL)*TYPE1* 1
12 17520K14930ZA TANK ASSY., FUEL(WL)*TYPE6* 1
13 17520K14670ZA TANK ASSY., FUEL(WL)*TYPE5* 1
14 17520K14670ZB TANK ASSY., FUEL(WL)*TYPE4* 1
15 17508KVX600 RUBBER, RR. FUEL TANK MOUNTING 1
16 17509K23900 COLLAR, FUEL TANK MOUNT 1
17 17611KFN850 CUSHION, FR. FUEL TANK 2
18 17620KSP911 CAP COMP., FUEL FILLER (JAY USHIN) 1
19 17620K14931 CAP COMP,FUEL FILLER (MINDA) 1
20 17681K14900 TUBE, FUEL 1
21 37800K14901 FUEL UNIT 1
22 83551300000 GROMMET, AIR CLEANER CASE 2
23 83551376000 GROMMET, SIDE COVER 2
24 91305443740 O-RING, 39.5X5 1
25 9405006000 NUT, FLANGE, 6MM 4
26 9500202080 CLIP, TUBE(B8) 2
27 957010803508 BOLT, FLANGE, 8X35 1
28 957020803508 BOLT, FLANGE, 8X35 1
29 17506K14930 FILM A, TANK PROTECTOR 1
30 17507K14930 FILM B, TANK PROTECTOR 1
