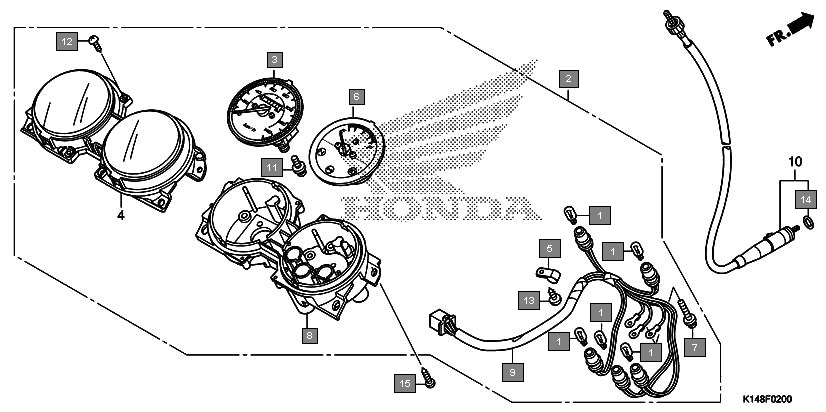

Motorcycles Dream Yuga CB110ME Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 5
2 37100K14901 METER ASSY., COMBINATION(KPH) 1
3 37210K14901 SPEEDOMETER COMP. 1
4 37211K14900 LENS 1
5 37215KS3901 CLAMP 1
6 37300K14901 METER COMP., FUEL 1
7 37305KE5008 SCREW-WASHER, 3X22 3
8 37610K14901 CASE ASSY., UNDER 1
9 37619KTE601 SOCKET COMP. 1
10 44830K14901 CABLE COMP., SPEEDOMETER 1
11 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
12 90101KY6008 SCREW, TAPPING, 3X14 4
13 90109MZ5008 SCREW, TAPPING, 4X14 1
14 91256KK3840 O-RING, 10X1.5 1
15 9390335310 SCREW, TAPPING, 5X16 4
