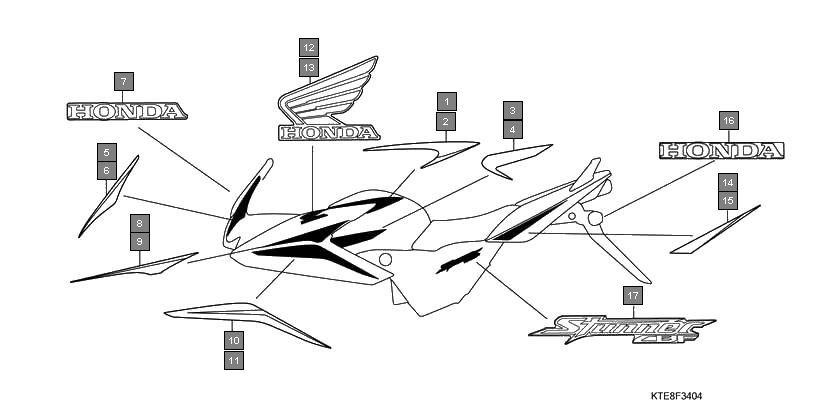

Motorcycles CBF Stunner CBF125MA Frame Mark(cbf125ma)
Ref.No. Part No. Description Oty
1 17507KWF840ZA STRIPE A, R. FUEL TANK *TYPE1* 1
2 17507KWF840ZB STRIPE A, R. FUEL TANK *TYPE2* 1
3 17507KWF840ZC STRIPE A, R. FUEL TANK *TYPE3* 1
4 17507KWF840ZD STRIPE A, R. FUEL TANK *TYPE4* 1
5 17508KWF840ZA STRIPE A, L. FUEL TANK *TYPE1* 1
6 17508KWF840ZB STRIPE A, L. FUEL TANK *TYPE2* 1
7 17508KWF840ZC STRIPE A, L. FUEL TANK *TYPE3* 1
8 17508KWF840ZD STRIPE A, L. FUEL TANK *TYPE4* 1
9 17515KWF840ZA STRIPE B, R. FUEL TANK *TYPE1* 1
10 17515KWF840ZB STRIPE B, R. FUEL TANK *TYPE2* 1
11 17515KWF840ZC STRIPE B, R. FUEL TANK *TYPE3* 1
12 17515KWF840ZD STRIPE B, R. FUEL TANK *TYPE4* 1
13 17516KWF840ZA STRIPE B, L. FUEL TANK *TYPE1* 1
14 17516KWF840ZB STRIPE B, L. FUEL TANK *TYPE2* 1
15 17516KWF840ZC STRIPE B, L. FUEL TANK *TYPE3* 1
16 17516KWF840ZD STRIPE B, L. FUEL TANK *TYPE4* 1
17 61305KWF840ZA STRIPE, R. FR. COWL *TYPE1* 1
18 61305KWF840ZB STRIPE, R. FR. COWL *TYPE2* 1
19 61305KWF840ZC STRIPE, R. FR. COWL *TYPE3* 1
20 61305KWF840ZD STRIPE, R. FR. COWL *TYPE4* 1
21 61306KWF840ZA STRIPE, L. FR. COWL *TYPE1* 1
22 61306KWF840ZB STRIPE, L. FR. COWL *TYPE2* 1
23 61306KWF840ZC STRIPE, L. FR. COWL *TYPE3* 1
24 61306KWF840ZD STRIPE, L. FR. COWL *TYPE4* 1
25 64108KWF900ZA MARK, WINDSCREEN *TYPE1* 1
26 64206KWF840ZA STRIPE A, R. FR. COWL *TYPE1* 1
27 64206KWF840ZB STRIPE A, R. FR. COWL *TYPE2* 1
28 64206KWF840ZC STRIPE A, R. FR. COWL *TYPE3* 1
29 64206KWF840ZD STRIPE A, R. FR. COWL *TYPE4* 1
30 64207KWF840ZA STRIPE A, L. FR. COWL *TYPE1* 1
31 64207KWF840ZB STRIPE A, L. FR. COWL *TYPE2* 1
32 64207KWF840ZC STRIPE A, L. FR. COWL *TYPE3* 1
33 64207KWF840ZD STRIPE A, L. FR. COWL *TYPE4* 1
34 64208KWF840ZA STRIPE B, R. FR. COWL *TYPE1* 1
35 64208KWF840ZB STRIPE B, R. FR. COWL *TYPE2* 1
36 64208KWF840ZC STRIPE B, R. FR. COWL *TYPE3* 1
37 64208KWF840ZD STRIPE B, R. FR. COWL *TYPE4* 1
38 64209KWF840ZA STRIPE B, L. FR. COWL *TYPE1* 1
39 64209KWF840ZB STRIPE B, L. FR. COWL *TYPE2* 1
40 64209KWF840ZC STRIPE B, L. FR. COWL *TYPE3* 1
41 64209KWF840ZD STRIPE B, L. FR. COWL *TYPE4* 1
42 64214KWF840ZA MARK, R. WING(100MM) *TYPE1* 1
43 64214KWF900ZB MARK, R. WING(100MM) *TYPE2* 1
44 64214KWF900ZC MARK, R. WING(100MM) *TYPE3* 1
45 64214KWF900ZD MARK, R. WING(100MM) *TYPE4* 1
46 64215KWF840ZA MARK, L. WING(100MM) *TYPE1* 1
47 64215KWF900ZB MARK, L. WING(100MM) *TYPE2* 1
48 64215KWF900ZC MARK, L. WING(100MM) *TYPE3* 1
49 64215KWF900ZD MARK, L. WING(100MM) *TYPE4* 1
50 77215KWF840ZA STRIPE, R. RR. LOWER COWL *TYPE1* 1
51 77215KWF840ZB STRIPE, R. RR. LOWER COWL *TYPE2* 1
52 77215KWF840ZC STRIPE, R. RR. LOWER COWL *TYPE3* 1
53 77215KWF840ZD STRIPE, R. RR. LOWER COWL *TYPE4* 1
54 77216KWF840ZA STRIPE, L. RR. LOWER COWL *TYPE1* 1
55 77216KWF840ZB STRIPE, L. RR. LOWER COWL *TYPE2* 1
56 77216KWF840ZC STRIPE, L. RR. LOWER COWL *TYPE3* 1
57 77216KWF840ZD STRIPE, L. RR. LOWER COWL *TYPE4* 1
58 80121KWF900ZA MARK, RR. FENDER *TYPE1* 1
59 83710KWF900ZA MARK, SIDE COVER *TYPE1* 2
