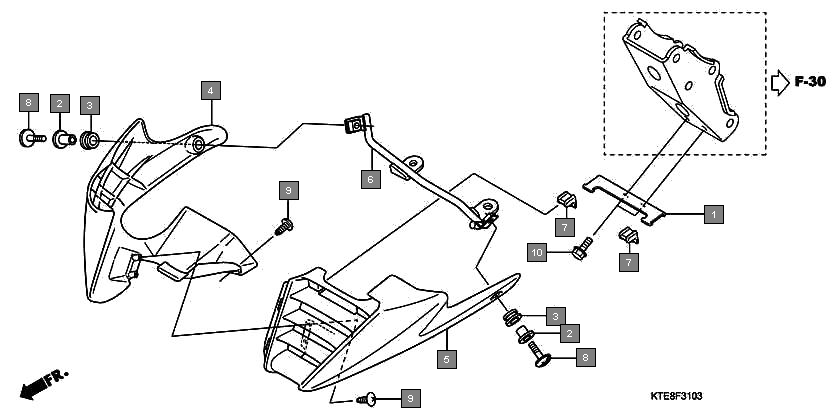

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 53700KWF840 | BRACKET, UNDER COWL | 1 |
2 | 61103KRY900 | COLLAR A, FR. FENDER | 2 |
3 | 61105KRY900 | RUBBER, FR. FENDER MOUNTING | 2 |
4 | 64300KWF841ZC | COWL, R. UNDER *R321* SPORTS RED | 1 |
5 | 64300KWF841ZD | COWL, R. UNDER *Y206P* PEARL SPORTS YELLOW | 1 |
6 | 64300KWF841ZA | COWL, R. UNDER *NHB06M* SPACE SILVER METALLIC | 1 |
7 | 64300KWF841ZB | COWL, R. UNDER *NH194MU* HEAVY GRAY METALLIC-U | 1 |
8 | 64400KWF840ZC | COWL, L. UNDER *R321* SPORTS RED | 1 |
9 | 64400KWF840ZD | COWL, L. UNDER *Y206P* PEARL SPORTS YELLOW | 1 |
10 | 64400KWF840ZA | COWL, L. UNDER *NHB06M* SPACE SILVER METALLIC | 1 |
11 | 64400KWF840ZB | COWL, L. UNDER *NH194MU* HEAVY GRAY METALLIC-U | 1 |
12 | 64530KWF840 | STAY, UNDER COWL | 1 |
13 | 83502KCC900 | GROMMET, SIDE COVER | 2 |
14 | 90105KVN900 | BOLT, SPECIAL, 6X22 | 2 |
15 | 9390334320 | SCREW, TAPPING, 4X12 | 3 |
16 | 957010601200 | BOLT, FLANGE, 6X12 | 2 |
17 | 957020601200 | BOLT, FLANGE, 6X12 | 2 |
