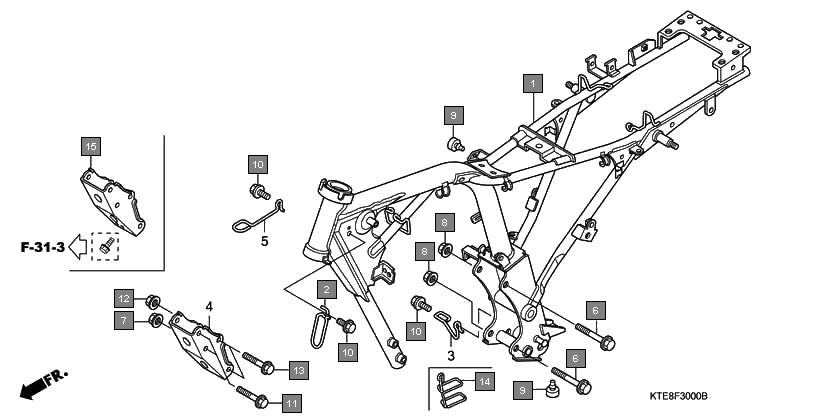

Motorcycles CBF Stunner CBF125MA Frame Frame body
Ref.No. Part No. Description Oty
1 50100KWF840 BODY COMP., FRAME 1
2 50187KTE910 GUIDE, MAIN HARNESS 1
3 90019399010 BOLT, FLANGE, 10X110 2
4 9405010000 NUT, FLANGE, 10MM 2
5 9501162000 RUBBER B, STAND STOPPER 2
6 957010601200 BOLT, FLANGE, 6X12 2
7 957020601200 BOLT, FLANGE, 6X12 2
8 958011008500 BOLT, FLANGE, 10X85 2
9 958021008500 BOLT, FLANGE, 10X85 2
10 9405008000 NUT, FLANGE, 8MM 2
11 958010808500 BOLT, FLANGE, 8X85 2
12 958020808500 BOLT, FLANGE, 8X85 2
13 50296KWF900 GUIDE, DRAIN HOSE 1
14 50351KWF840 PLATE, FR. ENGINE HANGER 1
