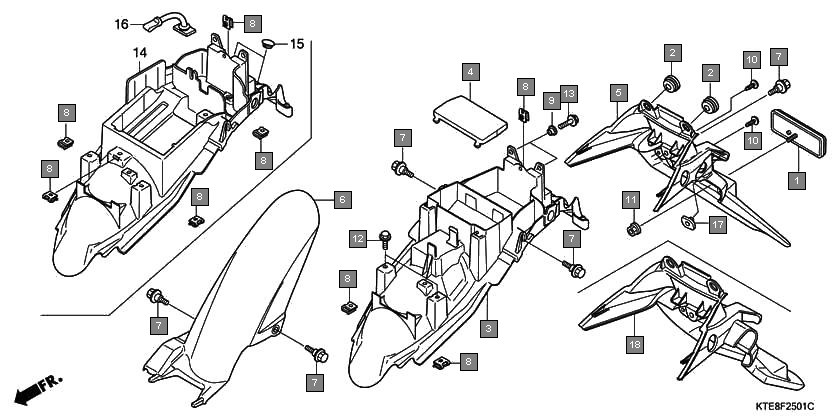

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33741KPL901 | REFLECTOR, REFLEX | 1 |
2 | 61304KRY900 | RUBBER, HEADLIGHT CASE MOUNTING | 2 |
3 | 80100KWF900 | FENDER, RR. | 1 |
4 | 80110KWF900 | COVER, TOOL BOX | 1 |
5 | 80120KWF900ZA | COVER SET, RR. FENDER(WL) *TYPE1* | 1 |
6 | 80250KWF900 | FENDER, HUGGER | 1 |
7 | 90111KWF900 | BOLT, FLANGE, 6MM | 5 |
8 | 90320747000 | NUT, SPRING, 6MM | 3 |
9 | 90522KSP860 | COLLAR, CHAIN CASE SETTING | 2 |
10 | 9390335280 | SCREW, TAPPING, 5X12 | 2 |
11 | 9405005000 | NUT, FLANGE, 5MM | 1 |
12 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
13 | 957020601600 | BOLT, FLANGE, 6X16 | 2 |
14 | 957010602000 | BOLT, FLANGE, 6X20 | 2 |
15 | 957020602000 | BOLT, FLANGE, 6X20 | 2 |
16 | 90311KTE910 | NUT, RR. FENDER | 2 |
