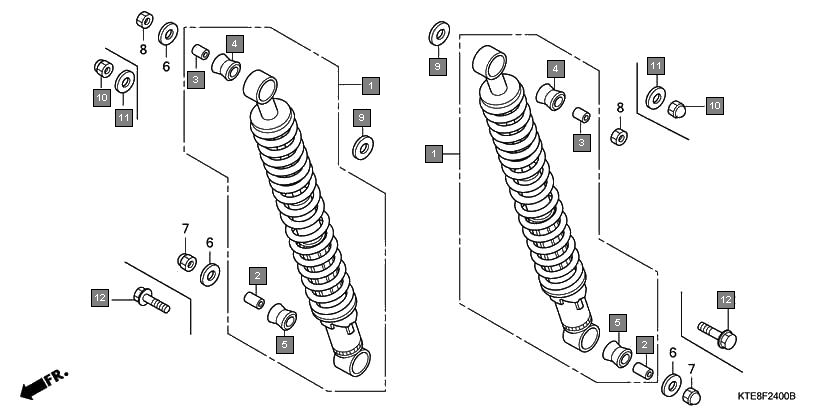

Motorcycles CBF Stunner CBF125MA Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400KWF961 CUSHION ASSY., RR. 2
2 52486KAG901 COLLAR, RUBBER BUSH 2
3 52486KTN701 COLLAR, RUBBER BUSH 2
4 52489399601 BUSH, UPPER RUBBER 2
5 52495098000 BUSH, RUBBER 2
6 9410112000 WASHER, PLAIN, 12MM 2
7 94021100200S NUT, CAP, 10MM 2
8 90551KTE910 WASHER, SPECIAL, 10MM 2
9 958011003500 BOLT, FLANGE, 10X35 2
10 958021003500 BOLT, FLANGE, 10X35 2
