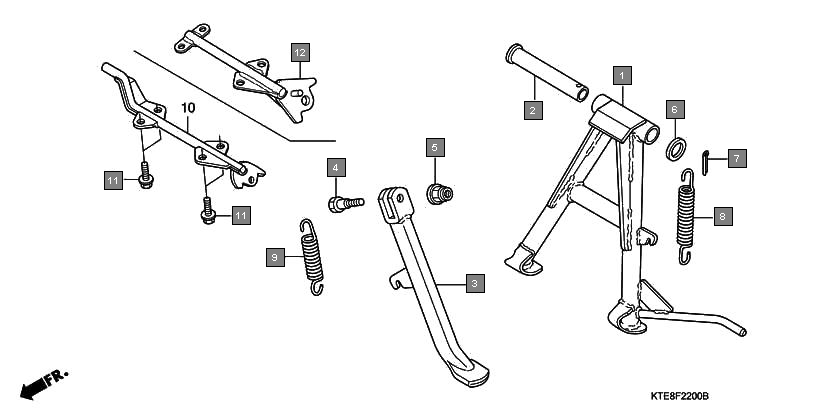

Motorcycles CBF Stunner CBF125MA Frame Stand
Ref.No. Part No. Description Oty
1 50500KWF900 STAND COMP., MAIN 1
2 50526KTE910 SHAFT, MAIN STAND PIVOT 1
3 50530KWF900 BAR COMP., SIDE STAND 1
4 90107GN1010 SCREW, SIDE STAND PIVOT 1
5 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
6 90521028000 WASHER, 17X22 1
7 9420130300 PIN, SPLIT, 3.0X30 1
8 9501471702 SPRING G, MAIN STAND 1
9 9501472102 SPRING A, SIDE STAND 1
10 957010802000 BOLT, FLANGE, 8X20 4
11 957020802000 BOLT, FLANGE, 8X20 4
12 50520KWF960 BRACKET COMP., SIDE STAND 1
