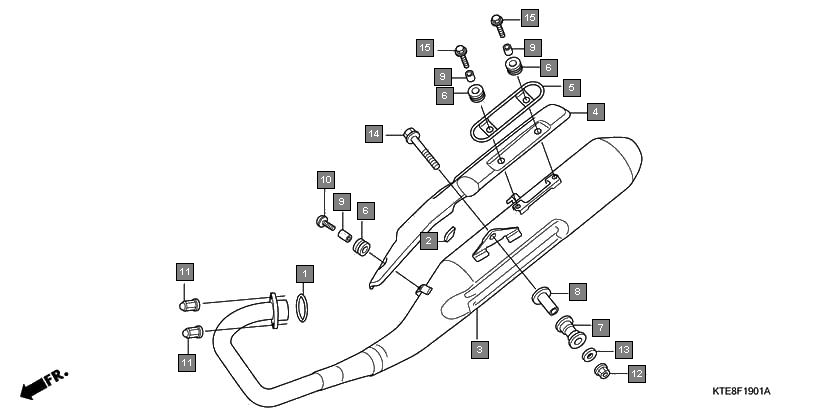

Motorcycles CBF Stunner CBF125MA Frame Exhaust muffler(2)
Ref.No. Part No. Description Oty
1 18291MN5650 GASKET, EX. PIPE 1
2 18293KPK900 RUBBER, PROTECTOR PACKING 1
3 18300KWF840 MUFFLER COMP., EX. 1
4 18311KWF840 COVER, MUFFLER 1
5 18317KWF840 PROTECTOR, MUFFLER 1
6 18345MBT610 RUBBER, PROTECTOR MOUNTING 3
7 18421438670 RUBBER, MUFFLER MOUNTING 1
8 18442KRC900 COLLAR, MUFFLER MOUNTING 1
9 33619459840 COLLAR, WINKER STAY 3
10 90107KST940 SCREW, MUFFLER PROTECTOR 1
11 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
12 9405010000 NUT, FLANGE, 10MM 1
13 9410310000 WASHER, PLAIN, 10MM 1
14 958011005500 BOLT, FLANGE, 10X55 1
15 958021005500 BOLT, FLANGE, 10X55 1
16 960010601602 BOLT, FLANGE, 6X16 2
