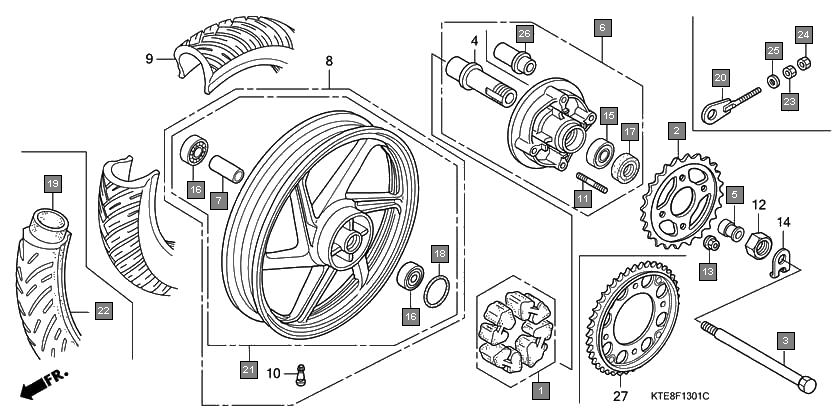

Motorcycles CBF Stunner CBF125MA Frame Rear wheel(2)
Ref.No. Part No. Description Oty
1 06410KTE910 DAMPER SET, WHEEL 1
2 42301KWF840 AXLE, RR. WHEEL 1
3 42304KWF950 COLLAR, RR. AXLE SLEEVE 1
4 42615KWF950 FLANGE SUB ASSY., FINAL DRIVEN 1
5 42620KTE950 COLLAR, RR. AXLE DISTANCE 1
6 42650KWF900 WHEEL SUB ASSY., RR. 1
7 42711KWF930 TIRE, RR.(TVS) (100/90-17 M/C 55P) 1
8 42711KWF901 TIRE, RR.(MRF) (100/90-17 M/C 55P) 1
9 42753KWF901 VALVE, RIM(TRITON) 1
10 90128KTE910 BOLT, STUD, 8X20 4
11 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
12 90558KTR900 WASHER, RR. AXLE 1
13 961506203010 BEARING, RADIAL BALL, 6203UU 1
14 91051KWF901 BEARING, RADIAL BALL, 6203UU(NSK) 1
15 961406301010 BEARING, RADIAL BALL, 6301U 2
16 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
17 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 1
18 91304704000 O-RING, 42MM 1
19 42303KWF950 SLEEVE, RR. WHEEL 1
20 41200KWF840 SPROCKET COMP., FINAL DRIVEN (43T) 1
