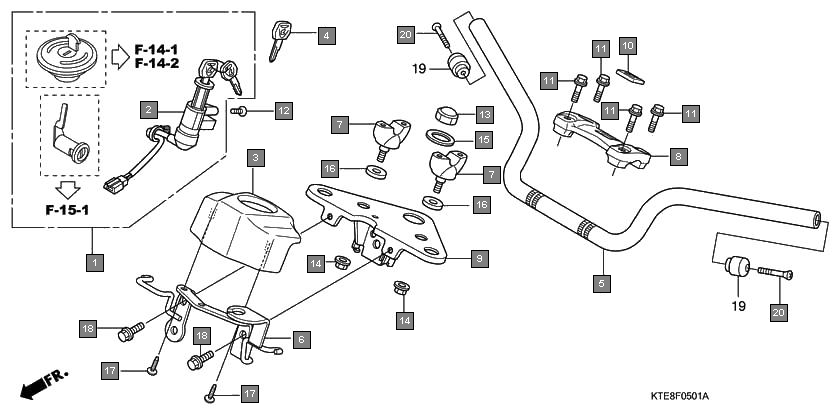

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 35010KWF900 | KEY SET | 1 |
2 | 35100KWF901 | SWITCH ASSY., COMBINATION & LOCK | 1 |
3 | 35105KWF900 | COVER, COMBINATION SWITCH | 1 |
4 | 35121KSP910 | KEY, BLANK | 1 |
5 | 53100KWF840ZA | PIPE COMP., STEERING HANDLE *NH303M* MAT AXIS GRAY METALLIC | 1 |
6 | 53127KWF930 | GUIDE, CABLE | 1 |
7 | 53127KWF900 | GUIDE, CABLE | 1 |
8 | 53130KTE910 | HOLDER, HANDLE UNDER | 2 |
9 | 53131KWF900ZA | HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC | 1 |
10 | 53230KWF900 | BRIDGE COMP., FORK TOP | 1 |
11 | 86150KPG901 | EMBLEM, PRODUCT(MARUI) | 1 |
12 | 90117383000 | BOLT, FLANGE, 6X28 | 4 |
13 | 90164KPL900 | SCREW, U-LOCK FLAT, 6X12 | 2 |
14 | 90304KSP900 | NUT, STEERING STEM | 1 |
15 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 2 |
16 | 90503KSP900 | WASHER, STEERING STEM | 1 |
17 | 90521427770 | WASHER, 10.3MM | 2 |
18 | 9390325210 | SCREW, TAPPING, 5X12 | 2 |
19 | 957010601408 | BOLT, FLANGE, 6X14 | 2 |
20 | 957020601408 | BOLT, FLANGE, 6X14 | 2 |
21 | 90107MCT771 | SCREW, OVAL, 6X35 | 2 |
