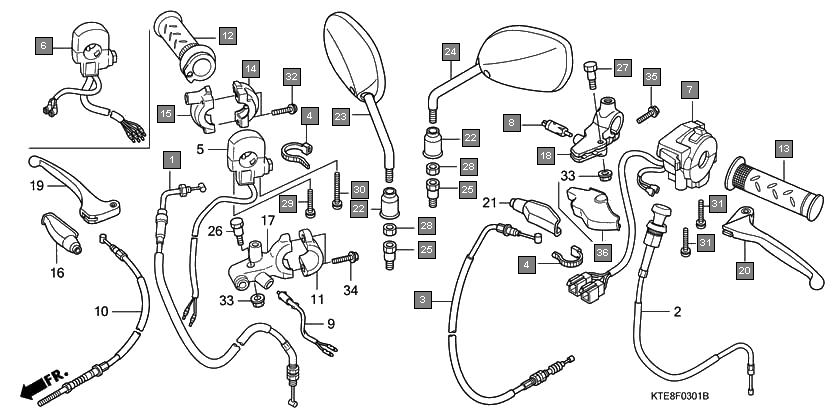

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17910KWF901 | CABLE COMP., THROTTLE | 1 |
2 | 17950KWF900 | CABLE COMP., CHOKE | 1 |
3 | 22870KWF900 | CABLE COMP., CLUTCH | 1 |
4 | 32161KSP920 | BAND B1, WIRE | 2 |
5 | 35150KWF921 | SWITCH ASSY., STARTER | 1 |
6 | 35150KWF931 | SWITCH ASSY., STARTER | 1 |
7 | 35200KWF920 | SWITCH ASSY., WINKER | 1 |
8 | 35330KEJ900 | SWITCH COMP., FR. LEVER | 1 |
9 | 35340KWF900 | SWITCH ASSY., FR. STOP | 1 |
10 | 45450KWF900 | CABLE COMP., FR. BRAKE | 1 |
11 | 45517166006 | HOLDER, MASTER CYLINDER | 1 |
12 | 53140KSPA70 | GRIP COMP., THROTTLE | 1 |
13 | 53166KSPA70 | GRIP, L. HANDLE | 1 |
14 | 53168KTE910 | HOUSING, UNDER THROTTLE | 1 |
15 | 53167KWF900 | HOUSING, UPPER THROTTLE | 1 |
16 | 53171KCC900 | COVER, R. HANDLE LEVER | 1 |
17 | 53171KFN870 | BRACKET, R. HANDLE LEVER | 1 |
18 | 53172KTE930 | BRACKET, L. HANDLE LEVER | 1 |
19 | 53175KFN870 | LEVER COMP., R. HANDLE | 1 |
20 | 53178KWF900 | LEVER COMP., L. HANDLE | 1 |
21 | 53179KTC900 | COVER, L. HANDLE LEVER | 1 |
22 | 88114KFN950 | CAP, LOCK NUT | 2 |
23 | 88210KWF841 | MIRROR COMP., R. | 1 |
24 | 88220KWF841 | MIRROR COMP., L. | 1 |
25 | 90103KTE920 | BOLT, ADAPTER, 10MM | 2 |
26 | 90113KWF900 | BOLT, HANDLE LEVER PIVOT | 1 |
27 | 90114428870 | BOLT, HANDLE LEVER PIVOT | 1 |
28 | 90201MW3620 | NUT, HEX., 10MM (LEFT HAND THREAD) | 2 |
29 | 93500040320G | SCREW, PAN, 4X32 | 1 |
30 | 93500040450G | SCREW, PAN, 4X45 | 1 |
31 | 93500050200G | SCREW, PAN, 5X20 | 2 |
32 | 93500050220G | SCREW, PAN, 5X22 | 2 |
33 | 9405006000 | NUT, FLANGE, 6MM | 1 |
34 | 9405006000 | NUT, FLANGE, 6MM | 2 |
35 | 960010602207 | BOLT, FLANGE, 6X22 | 2 |
36 | 960010602507 | BOLT, FLANGE, 6X25 | 1 |
