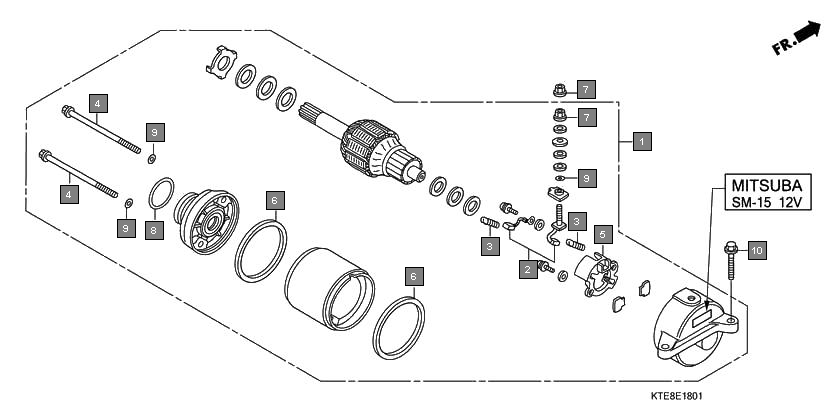

Motorcycles CBF Stunner CBF125MA Engine Starting motor(mitsuba sm-15)
Ref.No. Part No. Description Oty
1 31200KSP901 MOTOR ASSY., STARTING (MITSUBA SM-15) 1
2 31201KPTA01 TERMINAL SET, BRUSH 1
3 31204KG8004 SPRING, CARBON BRUSH 2
4 31205KTC921 BOLT, SETTING 2
5 31206KPH881 HOLDER, BRUSH 1
6 31207MBE008 RING 2
7 90071MB0000 NUT-WASHER, 6MM 2
8 91309425003 O-RING, 24.4X3.1(ARAI) 1
9 91320MB0000 O-RING, 4X2 3
10 957010602200 BOLT, FLANGE, 6X22 2
11 957020602200 BOLT, FLANGE, 6X22 2
