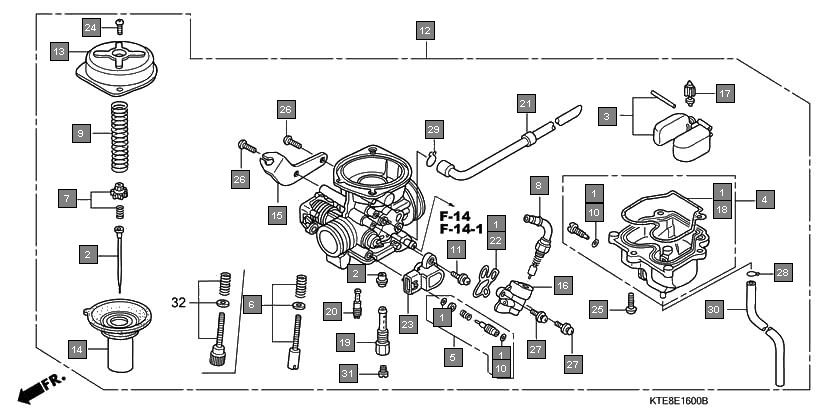

Motorcycles CBF Stunner CBF125MA Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KSP911 GASKET SET 1
2 16012KWF842 NEEDLE SET, JET 1
3 16013KRC921 FLOAT SET 1
4 16015KSP911 CHAMBER SET, FLOAT 1
5 16016KWF841 SCREW SET A 1
6 16037KPP861 PLATE SET, VALVE 1
7 16046KVC901 VALVE SET, STARTER 1
8 16050KWF841 SPRING, COMPRESSION COIL 1
9 16075KRP981 O-RING 2
10 16080KTN901 SCREW-WASHER, TORX(5X16) 1
11 16100KWF842 CARBURETOR ASSY.(AVK4BH A) 1
12 16107KGF911 TOP 1
13 16111KWF901 PISTON COMP., VACUUM 1
14 16119KTE911 STAY, WIRE 1
15 16140KTE911 BODY COMP., BYSTARTER 1
16 16155KFR701 VALVE COMP., FLOAT 1
17 16163KRP981 GASKET, FLOAT CHAMBER 1
18 16165KWF901 HOLDER, NEEDLE JET 1
19 16180KGF911 JET, SLOW, #38 1
20 16198KTE911 TUBE COMP., AIR VENT 1
21 16423KGH901 GASKET, BYSTARTER 1
22 37890KTN901 SENSOR ASSY., THROTTLE 1
23 93500040081H SCREW, PAN, 4X8 2
24 93500040120H SCREW, PAN, 4X12 3
25 93500050121H SCREW, PAN, 5X12 2
26 938920501218 SCREW-WASHER, 5X12 2
27 9500202089 CLIP, TUBE(B8) 1
28 9500202109 CLIP, TUBE(B10) 1
29 950054545050 TUBE, 4.5X450(95005-45001-50M) 1
30 99101MAZ1080 JET, MAIN, #108 1
31 16028KPP901 SCREW SET B 1
