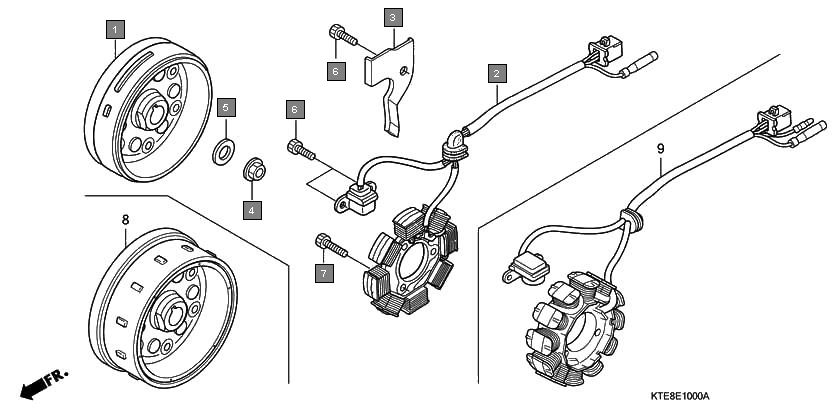

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31110KTE931 | FLYWHEEL COMP. | 1 |
2 | 31120KTE911 | STATOR COMP. | 1 |
3 | 32111KSP910 | CLAMPER, A.C. GENERATOR CORD | 1 |
4 | 90201KRM840 | NUT, FLANGE, 14MM | 1 |
5 | 90501KPTA00 | WASHER, 14.1X29X2.8 | 1 |
6 | 966000601600 | BOLT, SOCKET, 6X16 | 3 |
7 | 966000602500 | BOLT, SOCKET, 6X25 | 3 |
