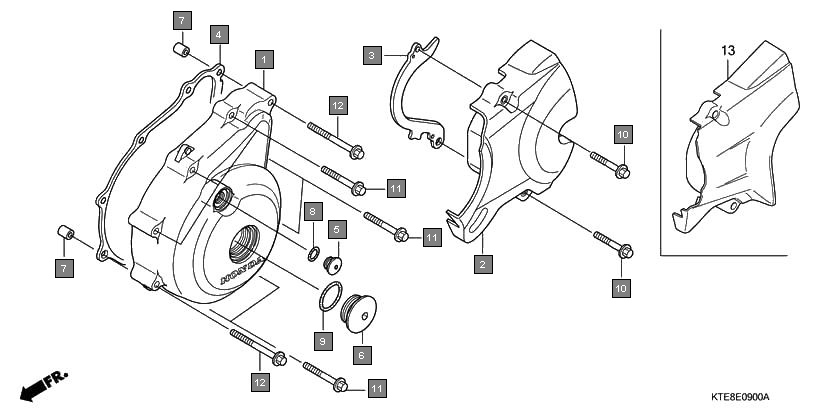

Motorcycles CBF Stunner CBF125MA Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341KSP860 COVER, L. CRANKCASE 1
2 11365KTE910 GUIDE, DRIVE CHAIN 1
3 11395KWK900 GASKET, L. COVER 1
4 90084MN8010 CAP, 14MM 1
5 90087KSP860 CAP, 32MM 1
6 90702KRM840 DOWEL PIN, 8X14 2
7 91303KRM840 O-RING, 13.8X2.5 1
8 91305KRM840 O-RING, 31.7X2.4 1
9 960010603000 BOLT, FLANGE, 6X30 2
10 960010603500 BOLT, FLANGE, 6X35 7
11 960010604500 BOLT, FLANGE, 6X45 2
12 11360KWF840 COVER COMP., L. RR. 1
