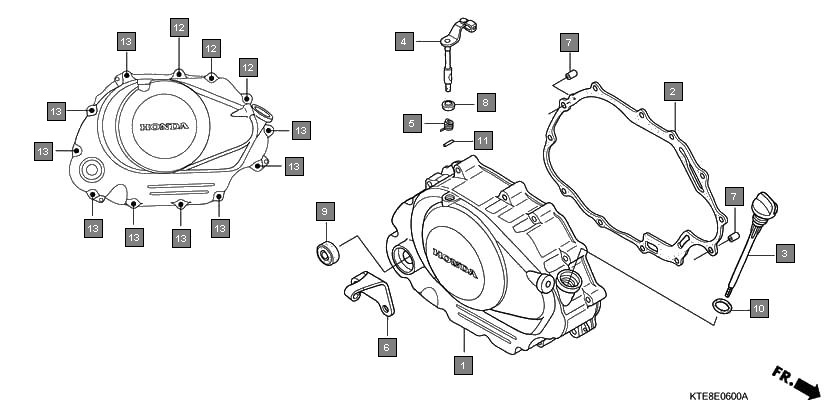

Motorcycles CBF Stunner CBF125MA Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 11330KWF840 COVER COMP., R. CRANKCASE 1
2 11393KWK900 GASKET, R. CRANKCASE COVER 1
3 15651KWF900 GAUGE, OIL LEVEL 1
4 22810KRMB00 LEVER COMP., CLUTCH 1
5 22815428000 SPRING, CLUTCH LEVER 1
6 22821KRM840 RECEIVER, CLUTCH CABLE 1
7 90702KRM840 DOWEL PIN, 8X14 2
8 91202KSP911 OIL SEAL, 12X18X4 1
9 91307KRM840 O-RING, 18X3 1
10 9430530102 PIN, SPRING, 3X10 1
11 960010603000 BOLT, FLANGE, 6X30 3
12 960010604000 BOLT, FLANGE, 6X40 9
